Notes
- Long overhang: 350mm
- HSK63/KM63 system extension
- Special cartridge for TPMT insert
- Boring-milling machine (W-axis)
Solution Specifications
| Material | 300M (forged) |

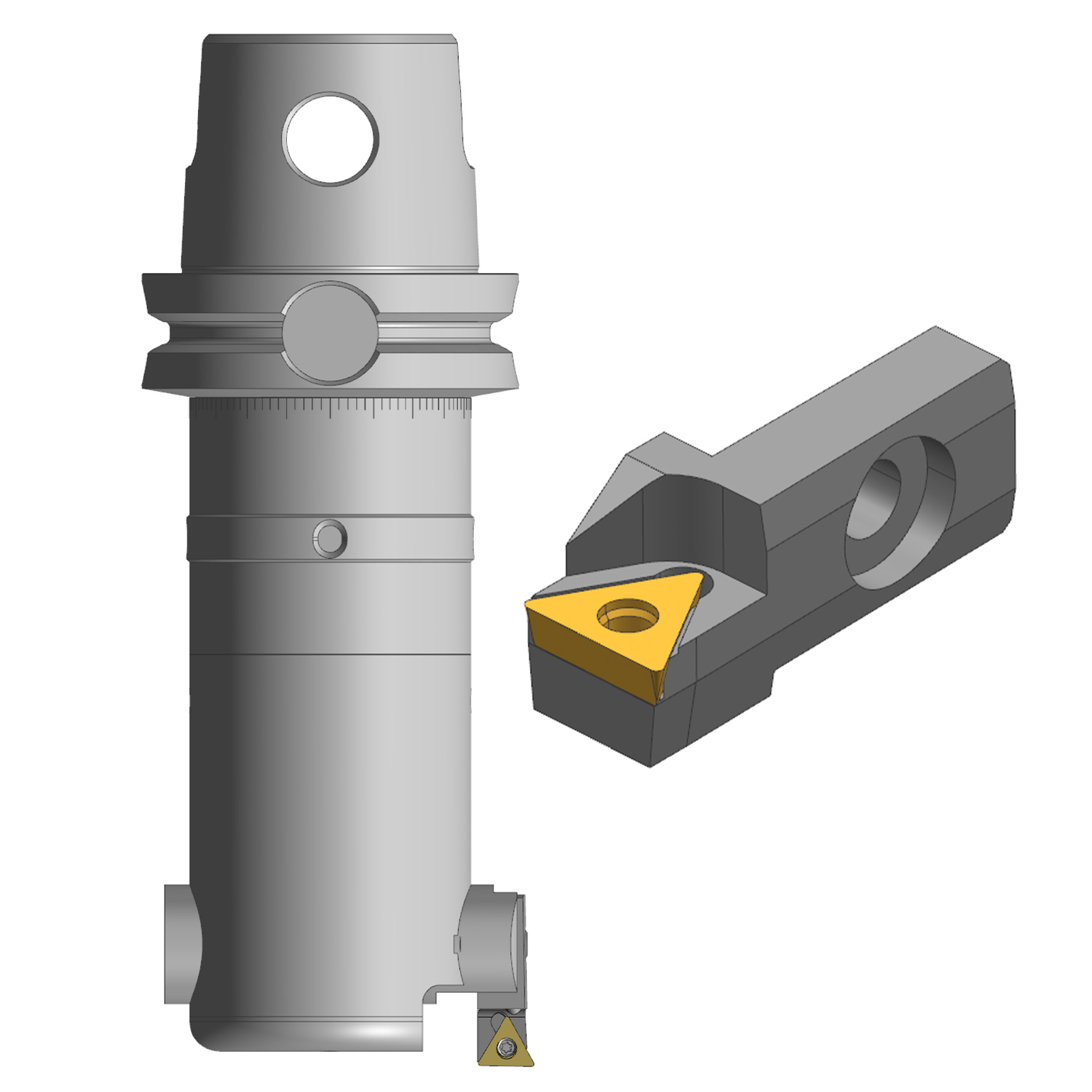

| Tool Description | Kennametal D68,13 Romicron Boring System |
| Kennametal MM# | MM 5124811 / MM 6557113 (Special, not listed on site) |
| Operation | Fine-boring |
| Cutting Edge | Carbide |
| Insert | Kennametal TPMT090204FP KCS10 |
| Vc | 45 m/min (150 SFM) |
| F | 0,1 mm/rev (.004 IPR) |
| Ap | 0,15 mm (0.006 in) |
| Power / Torque | – |
| Coolant supply | External |
| Objective | Hole with H7 tolerance & Ra0.8 |
| Tool Life | ~ 10 min |
