Aerospace Structure

LANDING GEAR COMPONENT


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21.png" alt="" class="wp-image-992" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>



<ul class="wp-block-list"><li>Objective was to lower X (thrust) cutting forces: the thrust decreased by 30-40% compared to HPGM insert</li><li>Tool life increased from 5 to 25 holes compared to HPGM insert</li><li>Realize on lathe machine</li><li>Outboard inserts: DFC06T312D36HP KCU40</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>6AL-4V Titanium (forged)</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal KSEM Plus Ø58mm / 2.283&#8243; Dia. B1</td></tr><tr><td><strong>Kennametal MM#</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.ksem-plus-b1-heads-28-1016mm.5116125.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">MM 5116125 (head)</a></td></tr><tr><td><strong>Operation</strong></td><td>Deep-hole drilling</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Insert</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.drill-fix-side-inserts-dfc-hp-geometry.5118454.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal KSEM_SPLM KCMS35</a><br><a href="https://www.kennametal.com/us/en/products/p.drill-fix-side-inserts-dfc-hp-geometry.5118454.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal DFC06T312D36HP KCU40</a></td></tr><tr><td><strong>Vc</strong></td><td>142 m/min (180 SFM) </td></tr><tr><td><strong>F</strong></td><td>0,25 mm/rev (.01 IPR)</td></tr><tr><td><strong>Depth</strong></td><td>622,3 mm (24.5 in)</td></tr><tr><td><strong>Pressure</strong></td><td>1000 PSI</td></tr><tr><td><strong>Coolant supply</strong></td><td>Internal Coolant</td></tr><tr><td><strong>Objective</strong></td><td>Stable process &amp; good tool life</td></tr><tr><td><strong>Tool Life</strong></td><td>25 holes</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">

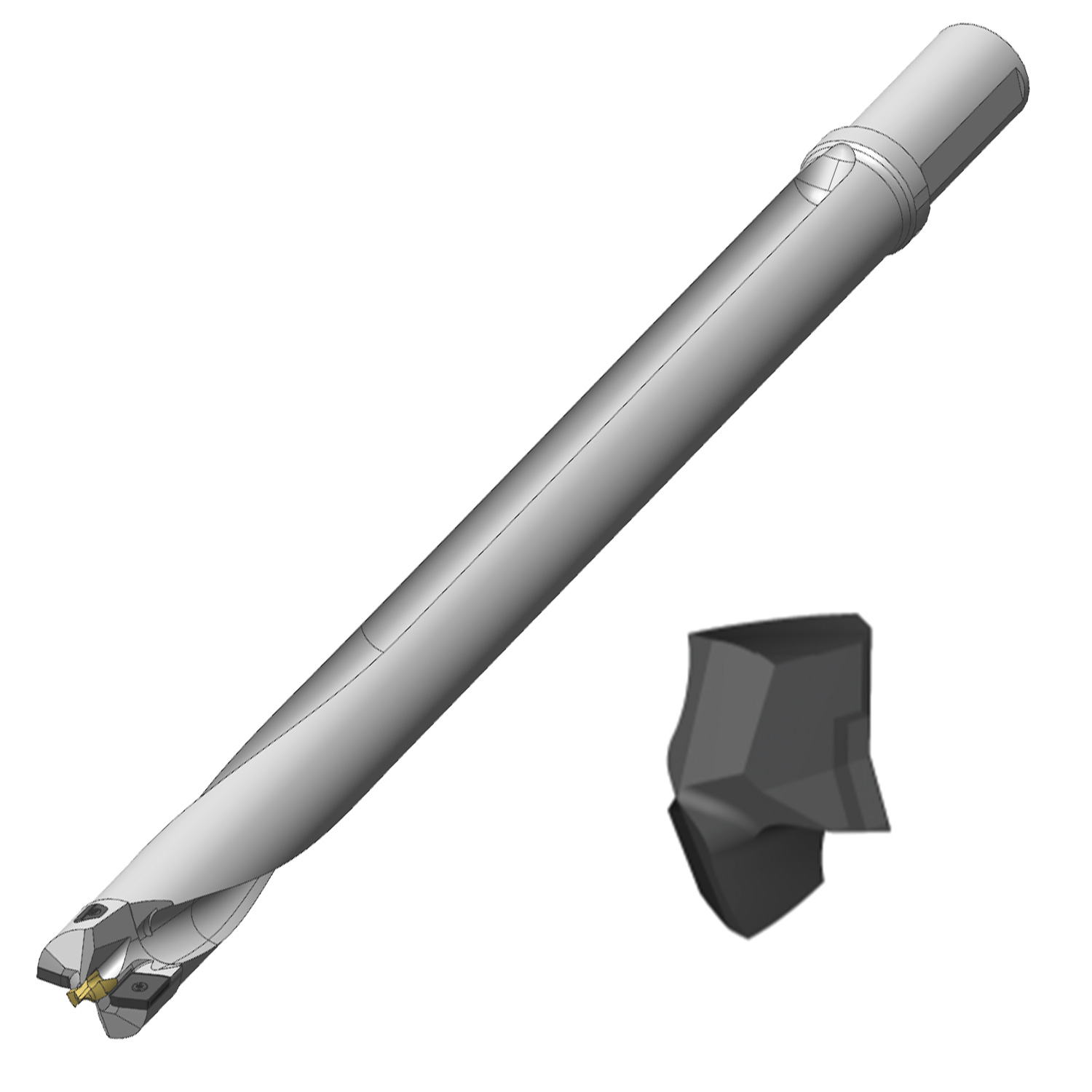

<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21-A2.jpg" alt="" class="wp-image-793" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21-A2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21-A2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S21-A2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
