Aerospace Structure

BEAM


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17.png" alt="" class="wp-image-975" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

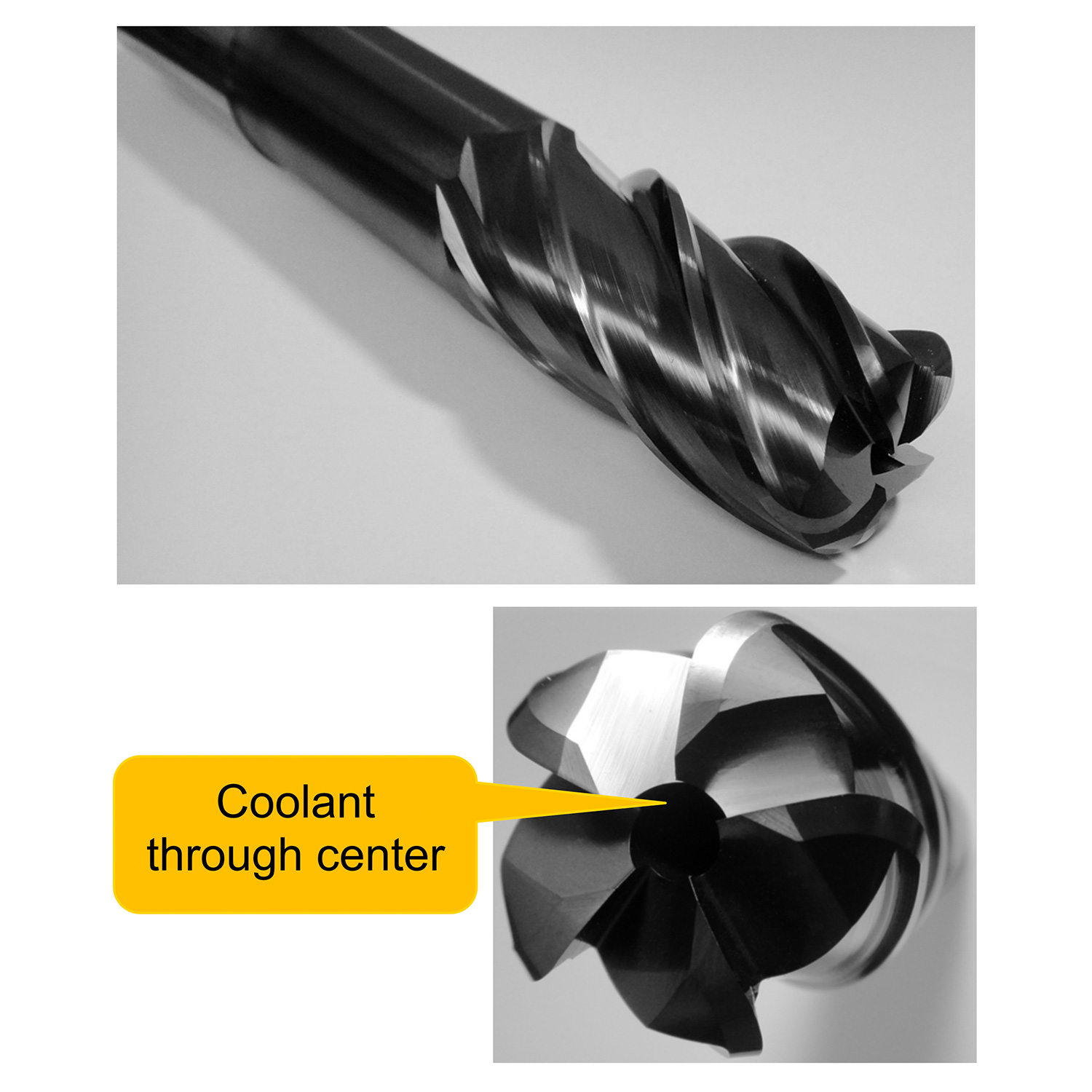

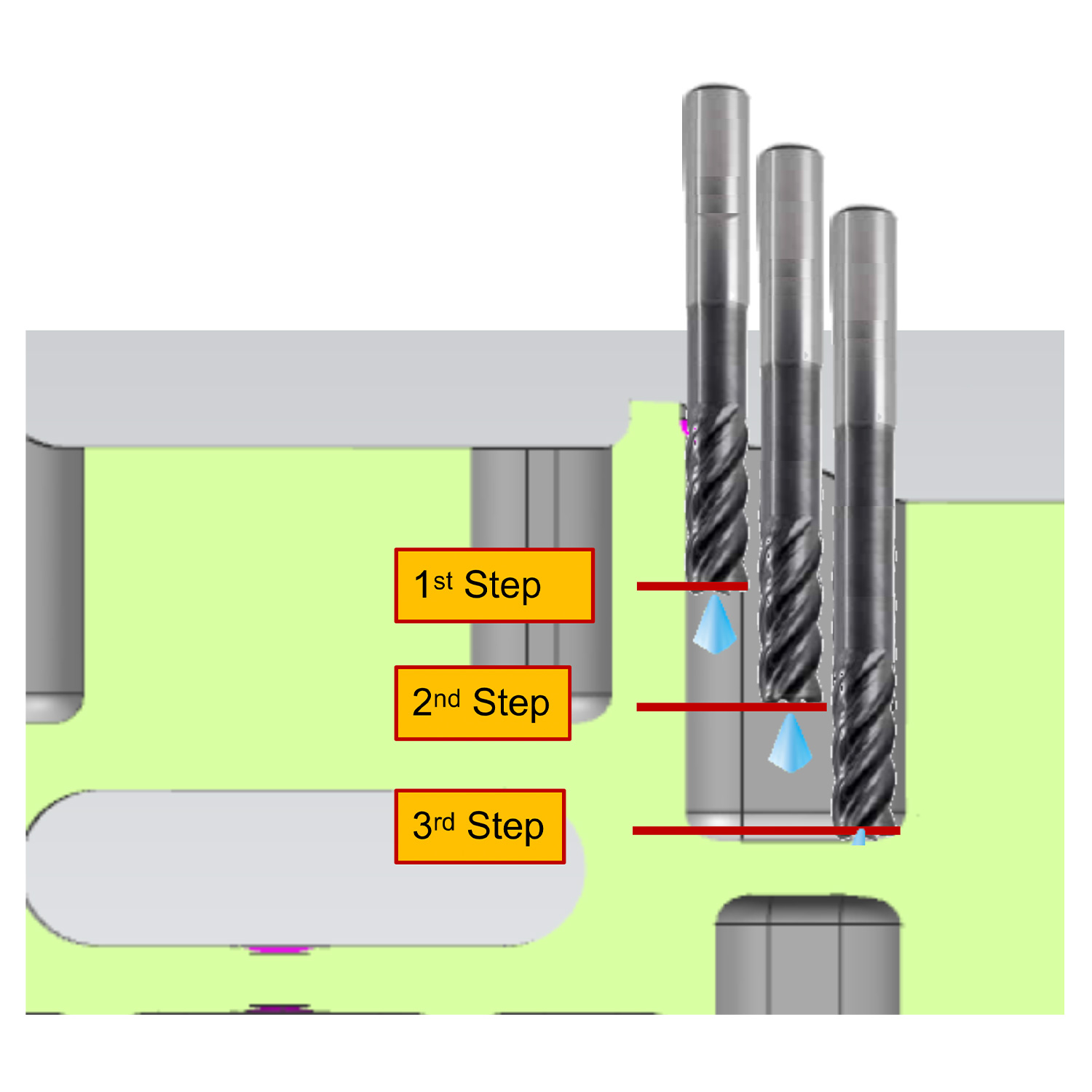

<ul class="wp-block-list"><li>Dynamic machining</li><li>Through high-pressure coolant for good chip evacuation</li><li>Secure strategy &amp; low cutting forces</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>6AL-4V Titanium</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal Harvi II Ø18 Z5 with internal coolant</td></tr><tr><td><strong>Kennametal MM#</strong></td><td>Special order tools, please contact Kennametal for additional information</td></tr><tr><td><strong>Drawing Number</strong></td><td>60371591 / 60372015</td></tr><tr><td><strong>Operation</strong></td><td>Roughing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Endmill</strong></td><td>Kennametal MES6577777 KC643M</td></tr><tr><td><strong>Vc</strong></td><td>100 m/min (330 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,08 mm/z (.003 IPT)</td></tr><tr><td><strong>Ap</strong></td><td>30 mm (1.2 in)</td></tr><tr><td><strong>Ae</strong></td><td>0,5 mm (.02 in)</td></tr><tr><td><strong>Power / Torque</strong></td><td>0,8 kW / 4 N.m</td></tr><tr><td><strong>MRR</strong></td><td>11 cm³/min (.67 in³/min)</td></tr><tr><td><strong>Coolant supply</strong></td><td>Internal Coolant</td></tr><tr><td><strong>Objective</strong></td><td>High MRR &amp; Good chip evacuation</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 100 min</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A2.jpg" alt="" class="wp-image-764" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A3.jpg" alt="" class="wp-image-765" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S17-A3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Beam: Milling

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	6AL-4V Titanium
Tool Description	Kennametal Harvi II Ø18 Z5 with internal coolant
Kennametal MM#	Special order tools, please contact Kennametal for additional information
Drawing Number	60371591 / 60372015
Operation	Roughing
Cutting Edge	Carbide
Endmill	Kennametal MES6577777 KC643M
Vc	100 m/min (330 SFM)
Fz	0,08 mm/z (.003 IPT)
Ap	30 mm (1.2 in)
Ae	0,5 mm (.02 in)
Power / Torque	0,8 kW / 4 N.m
MRR	11 cm³/min (.67 in³/min)
Coolant supply	Internal Coolant
Objective	High MRR & Good chip evacuation
Tool Life	~ 100 min
