Aerospace Structure

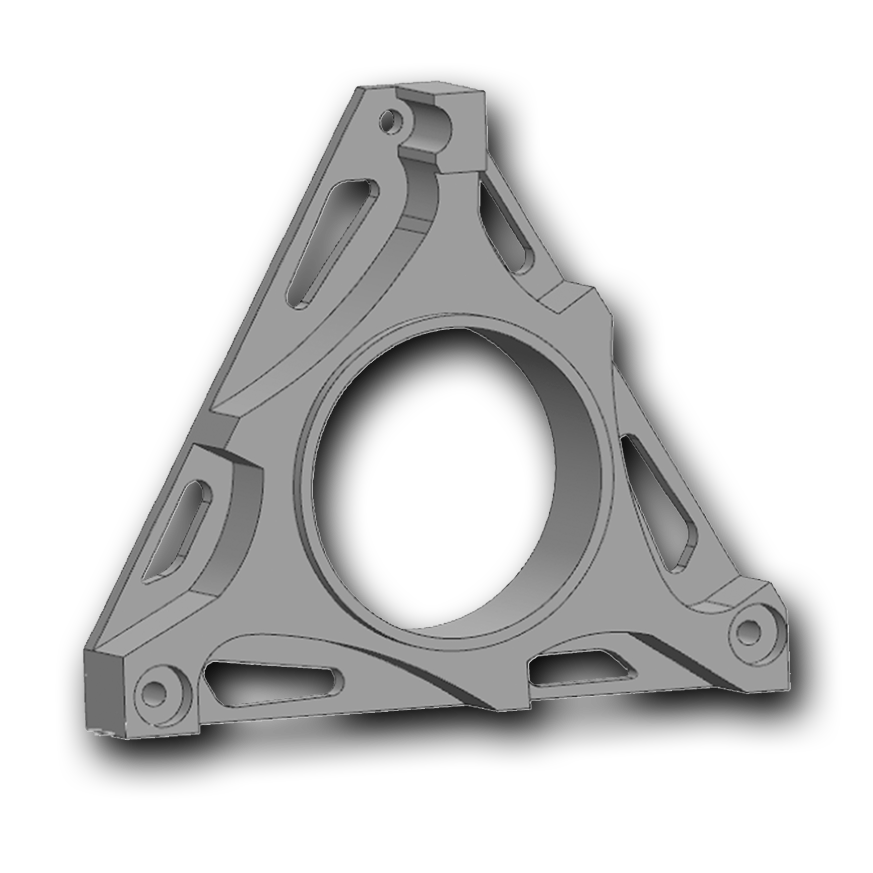

MANIFOLD


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15.png" alt="" class="wp-image-967" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

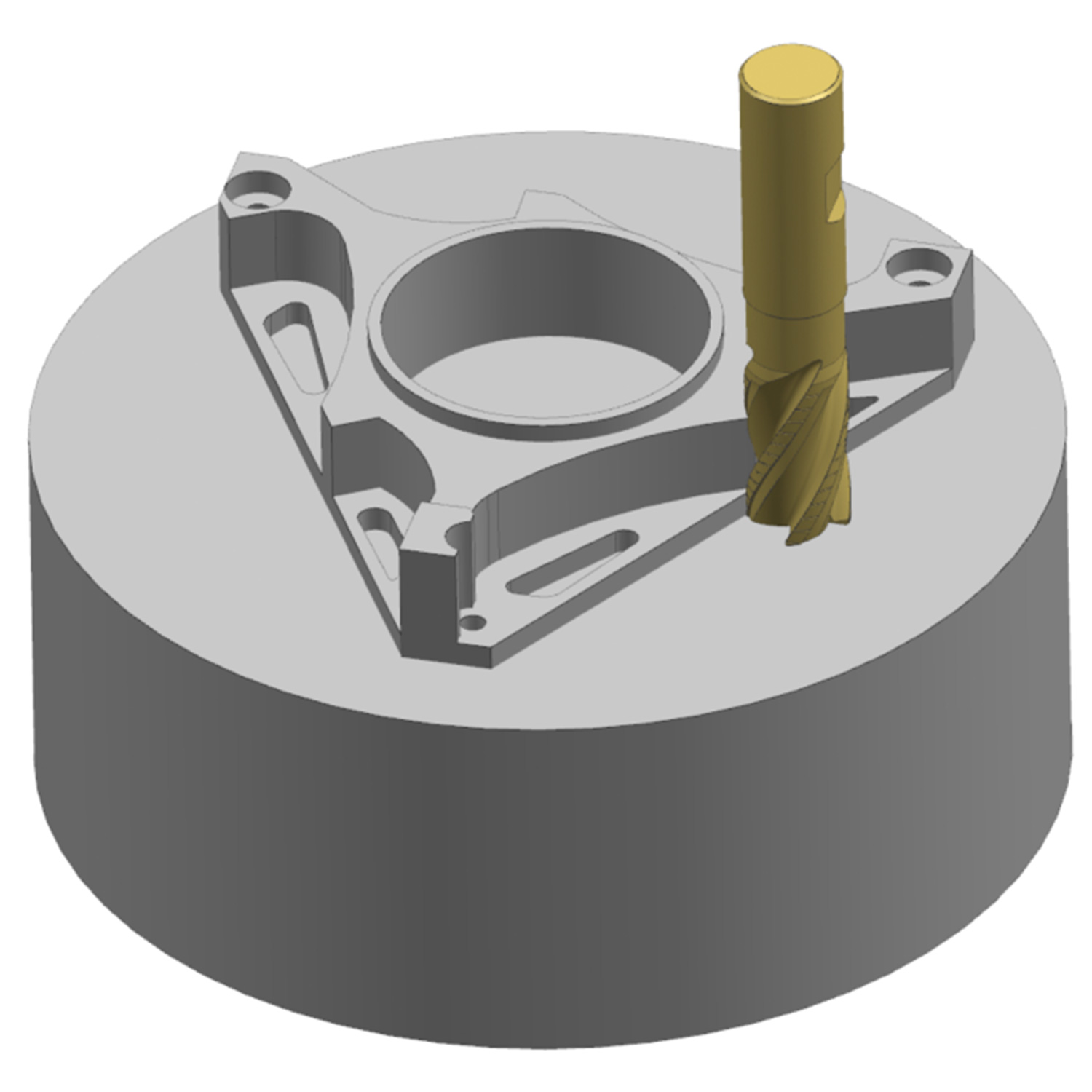

<ul class="wp-block-list"><li>Roughing profile</li><li>Raw material: Ø250 &amp; L=80mm</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>6AL-4V Titanium</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal Harvi I TE Ø20 Z4</td></tr><tr><td><strong>Kennametal MM#</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.harvi-i-te-radiused-4-flutes-necked-straight-shank-metric.6676289.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">MM 6676289</a></td></tr><tr><td><strong>Drawing Number</strong></td><td>61562292</td></tr><tr><td><strong>Operation</strong></td><td>Roughing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Endmill</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.harvi-i-te-radiused-4-flutes-necked-straight-shank-metric.6676289.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal H1TE4RA2000N030HAR050M KCSM15</a></td></tr><tr><td><strong>Vc</strong></td><td>55 m/min (180 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,05 mm/z (.02 IPT)</td></tr><tr><td><strong>Ap</strong></td><td>6-12 mm (.24 &#8211; 0.6 in)</td></tr><tr><td><strong>Ae</strong></td><td>20 mm (.79 in)</td></tr><tr><td><strong>Power / Torque</strong></td><td>2,4 kW / 27 N.m</td></tr><tr><td><strong>MRR</strong></td><td>42 cm³/min (2.6 in³/min)</td></tr><tr><td><strong>Coolant supply</strong></td><td>External Coolant</td></tr><tr><td><strong>Objective</strong></td><td>High MRR &amp; Good chip evacuation</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 180 min</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A2.jpg" alt="" class="wp-image-749" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A3.jpg" alt="" class="wp-image-750" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S15-A3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Manifold: Milling

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	6AL-4V Titanium

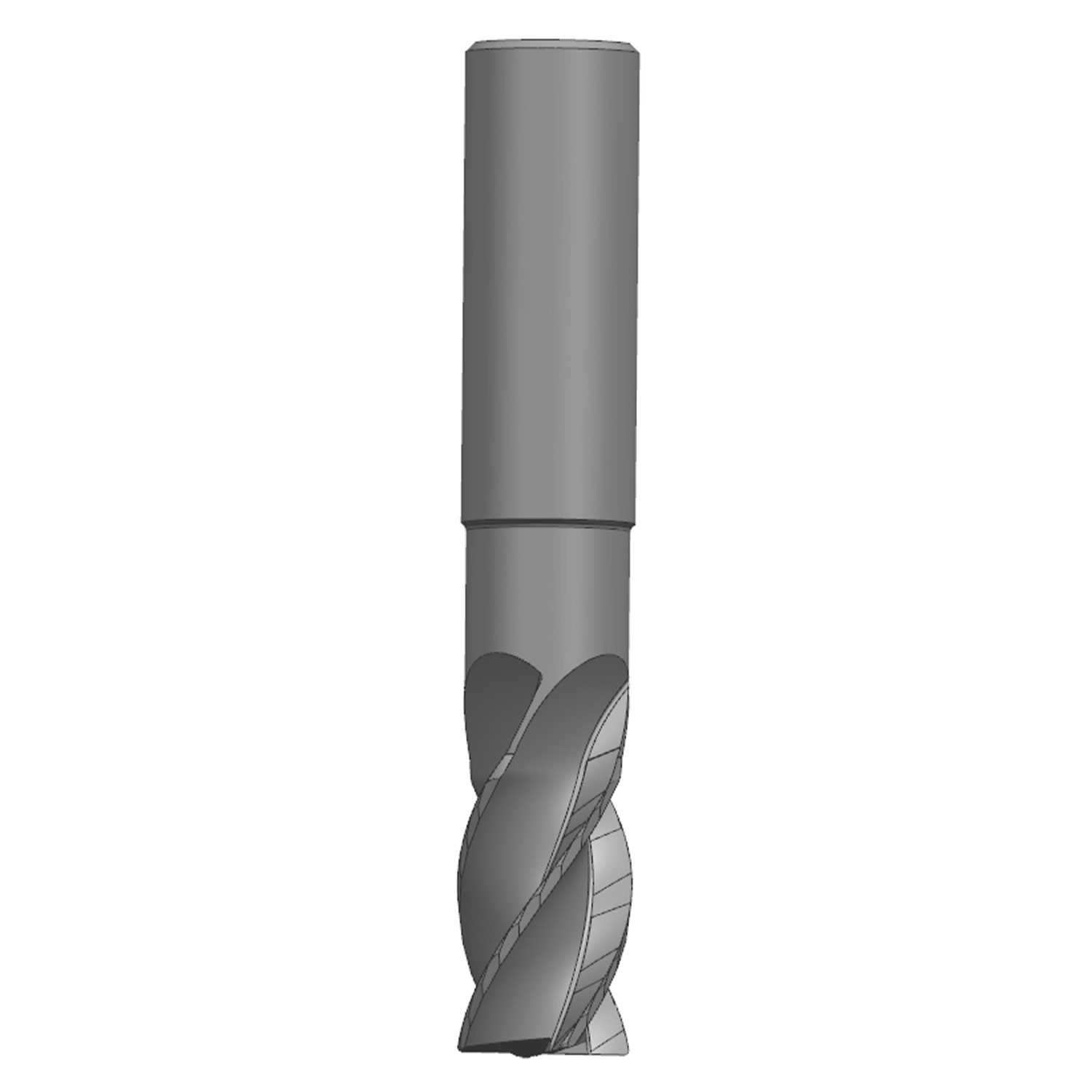

Tool Description	Kennametal Harvi I TE Ø20 Z4
Kennametal MM#	MM 6676289
Drawing Number	61562292
Operation	Roughing
Cutting Edge	Carbide
Endmill	Kennametal H1TE4RA2000N030HAR050M KCSM15
Vc	55 m/min (180 SFM)
Fz	0,05 mm/z (.02 IPT)
Ap	6-12 mm (.24 – 0.6 in)
Ae	20 mm (.79 in)
Power / Torque	2,4 kW / 27 N.m
MRR	42 cm³/min (2.6 in³/min)
Coolant supply	External Coolant
Objective	High MRR & Good chip evacuation
Tool Life	~ 180 min
