Aerospace Structure

BRACKET


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12.png" alt="" class="wp-image-950" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

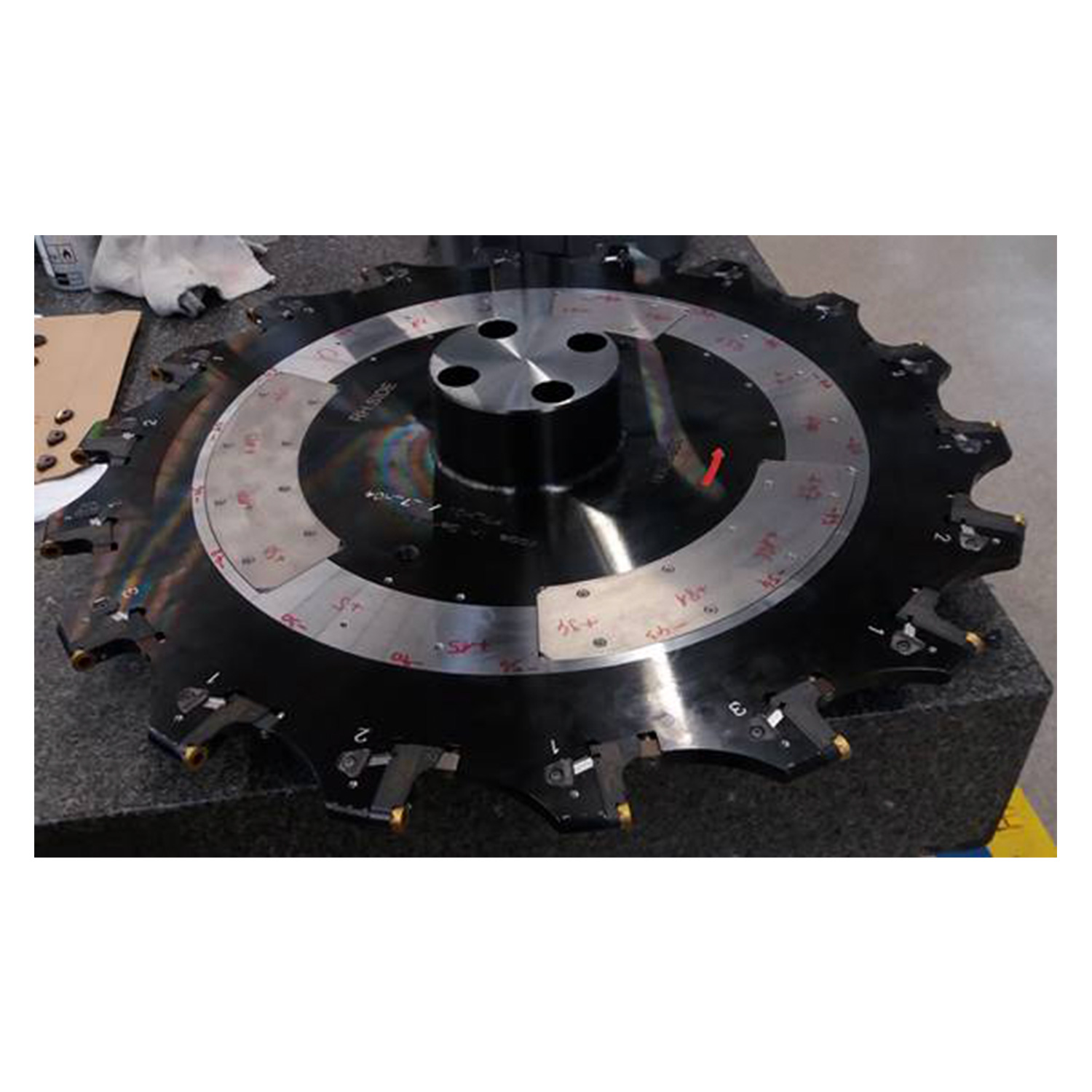

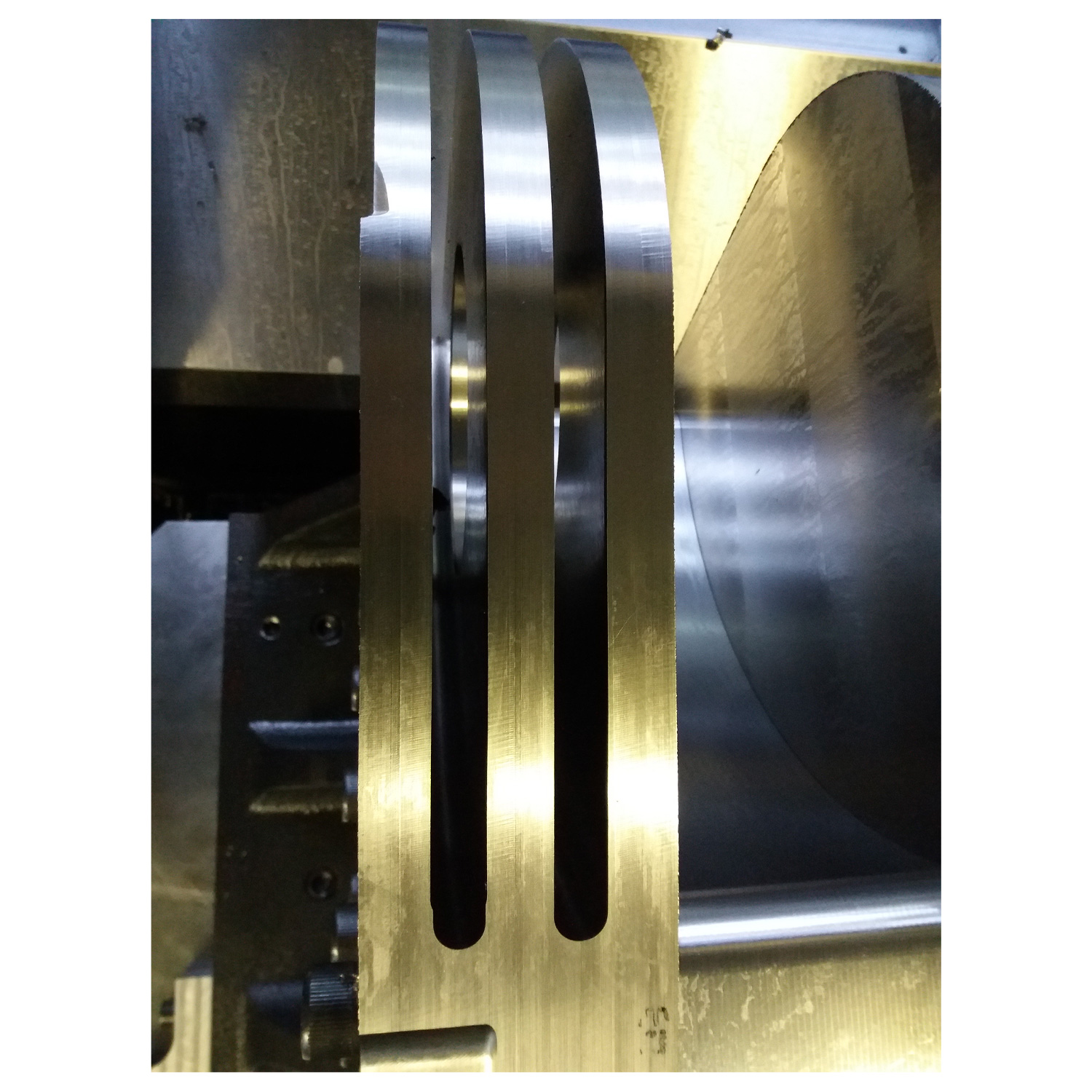

<ul class="wp-block-list"><li>Slotting in 1 shot</li><li>Unequal spacing and heavy metal split rings to avoid vibrations</li><li>Guiding pads and cartridges with coolant supply</li><li>Guide pads guarantee slot geometry and surface quality</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>6AL-4V Titanium (from a block)</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal Custom disk mill solution Ø630 Z18</td></tr><tr><td><strong>Kennametal MM#</strong></td><td>Special order tool, please contact Kennametal for additional information</td></tr><tr><td><strong>Drawing Number</strong></td><td>60925088</td></tr><tr><td><strong>Operation</strong></td><td>Roughing / Finishing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Insert</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.round-inserts-for-daisy-ksrm-rpet12-ge-ground-inserts.5299680.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal RPET43SGEJ KC725M</a></td></tr><tr><td><strong>Vc</strong></td><td>71 m/min (230 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,03 mm/z (.001 IPT)</td></tr><tr><td><strong>Ap</strong></td><td>12,7 mm (.5 in)</td></tr><tr><td><strong>Ae</strong></td><td>244 mm (9.6 in)</td></tr><tr><td><strong>Power / Torque</strong></td><td>6 kW / 1066 N.m</td></tr><tr><td><strong>MRR</strong></td><td>61 cm³/min (3.7 in³/min)</td></tr><tr><td><strong>Coolant supply</strong></td><td>Internal Coolant</td></tr><tr><td><strong>Objective</strong></td><td>Optimized process. 1 Tool only.</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 45 min/edge</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A2.jpg" alt="" class="wp-image-714" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A3.jpg" alt="" class="wp-image-715" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A4.jpg" alt="" class="wp-image-716" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A4.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A4-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A4-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A5.jpg" alt="" class="wp-image-717" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A5.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A5-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S12-A5-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Bracket: Milling

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	6AL-4V Titanium (from a block)

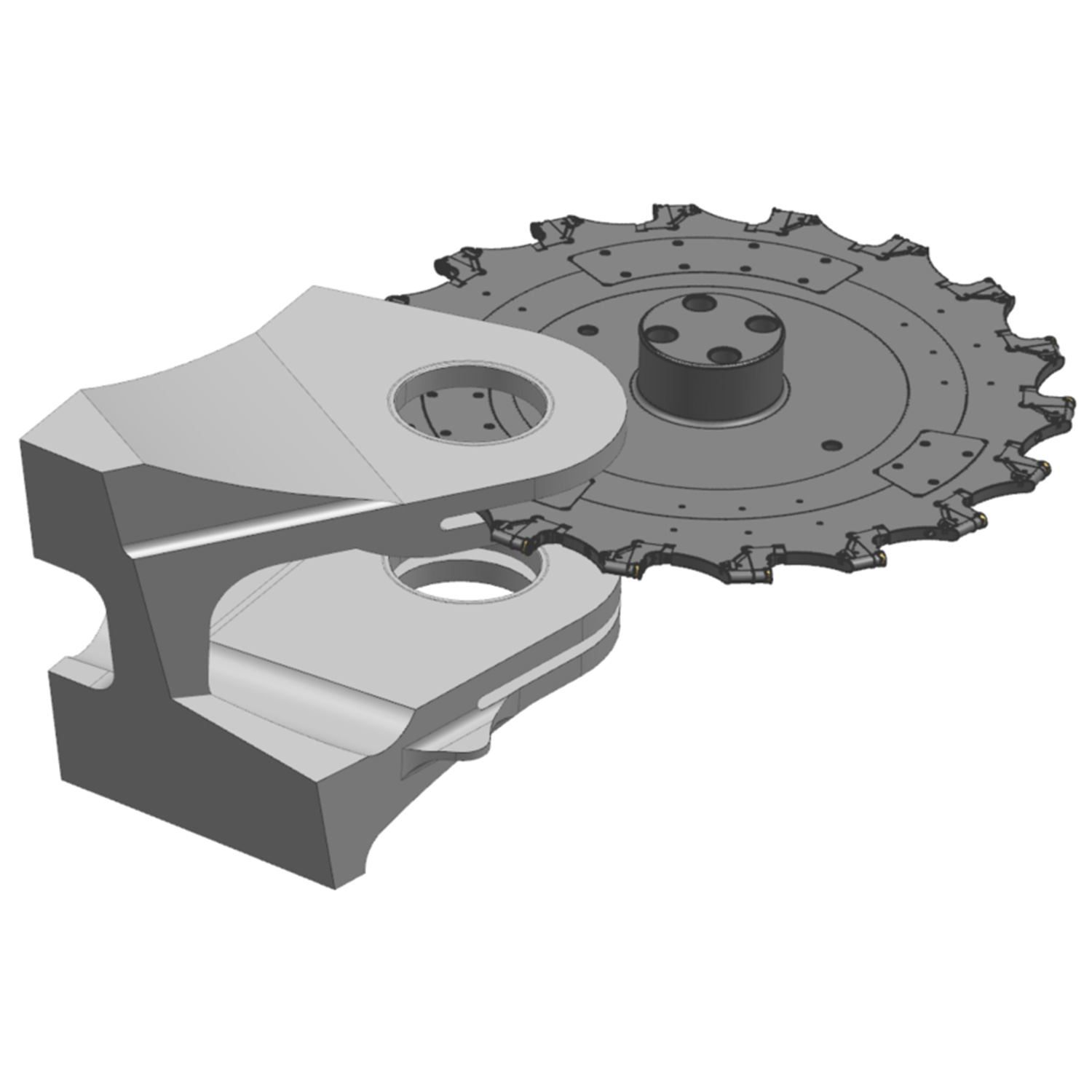

Tool Description	Kennametal Custom disk mill solution Ø630 Z18
Kennametal MM#	Special order tool, please contact Kennametal for additional information
Drawing Number	60925088
Operation	Roughing / Finishing
Cutting Edge	Carbide
Insert	Kennametal RPET43SGEJ KC725M
Vc	71 m/min (230 SFM)
Fz	0,03 mm/z (.001 IPT)
Ap	12,7 mm (.5 in)
Ae	244 mm (9.6 in)
Power / Torque	6 kW / 1066 N.m
MRR	61 cm³/min (3.7 in³/min)
Coolant supply	Internal Coolant
Objective	Optimized process. 1 Tool only.
Tool Life	~ 45 min/edge
