Notes
- Design of the first row of inserts on the front is changed to avoid chip packing
- Full slot capacity through flute volume
- Better damping effect comparing to Harvi HUM design
Solution Specifications
| Material | 6AL-4V Titanium (forged) |

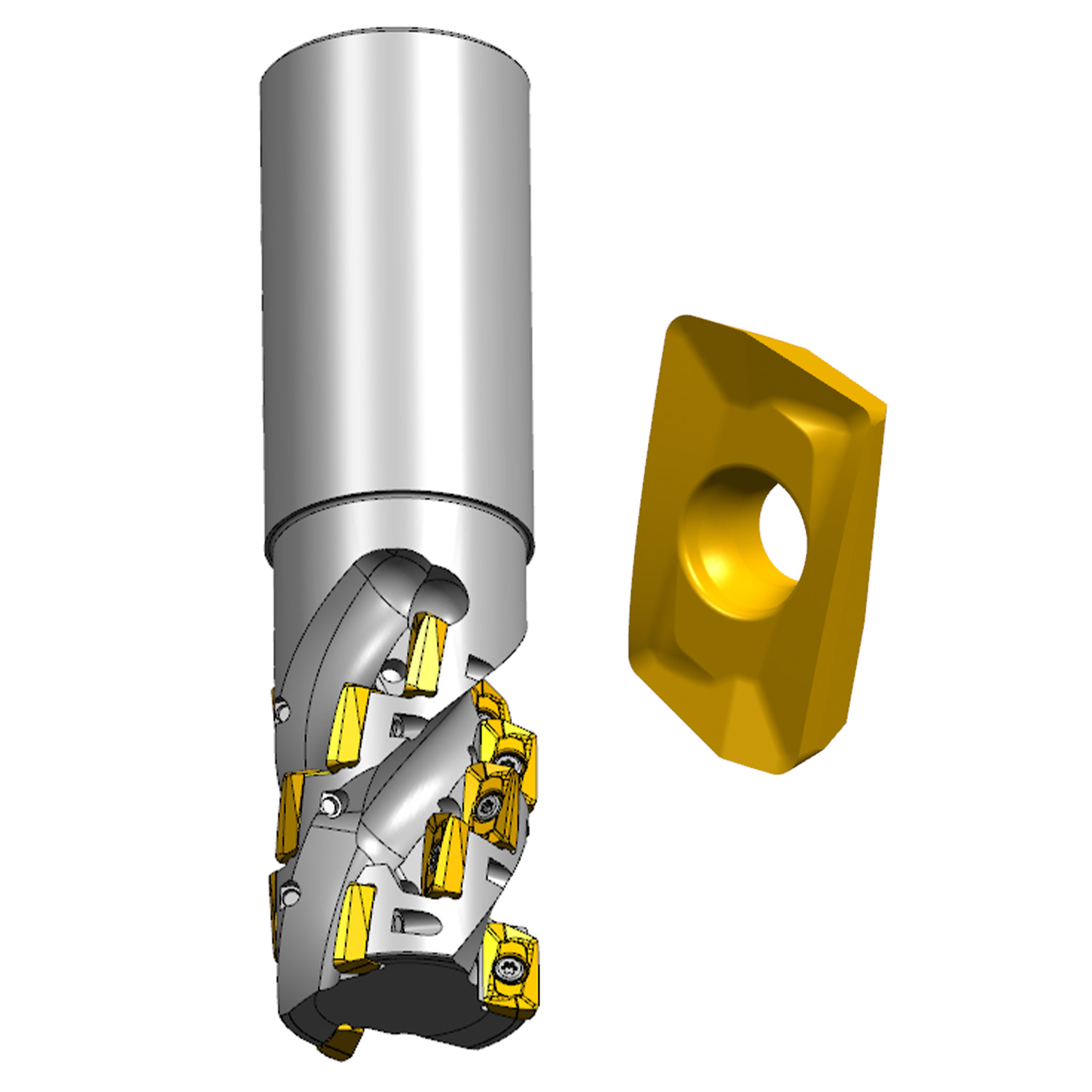

| Tool Description | Kennametal Ø32 Mill 1-10 Helical Z3 |
| Kennametal MM# | MM 3773121 |
| Drawing Number | 1921087 |
| Operation | Slotting & Side Milling |
| Cutting Edge | Carbide |
| Insert | Kennametal EDCT10T308PDERLD KCSM40 Kennametal EDCT10T316PDERLD KCSM40 |
| Vc | 40 m/min (130 SFM) |
| Fz | 0,12 mm/z (.004 in) |
| Ap | 32 mm (1.25 in) |
| Ae | 5 to 32 mm (.19 & 1.25 in) |
| Power / Torque | 7 kW / 163 N.m |
| MRR | 147 cm³/min (9.0 in³/min) |
| Coolant supply | Internal Coolant |
| Objective | Avoid vibration / Tool life |
| Tool Life | ~ 110 min/edge |
