Aerospace Engine

TURBINE DISK


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E8-A1.png" alt="" class="wp-image-1219" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E8-A1.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E8-A1-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E8-A1-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

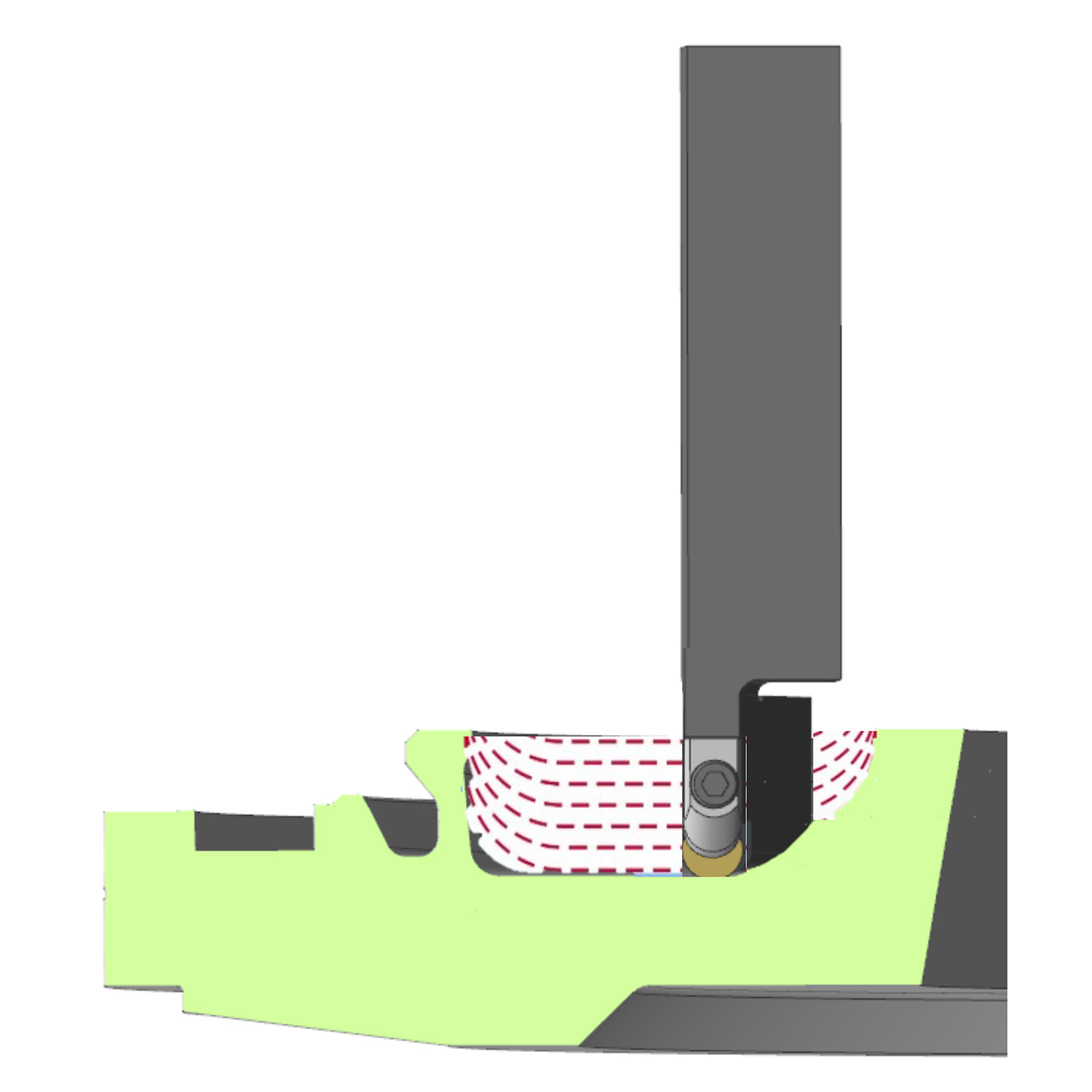

<ul class="wp-block-list"><li>Sweep 32&#215;32 mm square shank holder</li><li>Trochoidal orbit turning</li><li>High MRR due to ceramic insert</li></ul>
