<p>Inside information, strategies, feeds/speeds, tooling, and techniques to give you a robust knowledge of how to manufacture aerospace engine components.</p>
<p><strong>POWERED BY KENNAMETAL.</strong></p>


Aerospace Engine

ROTOR


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-A1.png" alt="" class="wp-image-1195" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-A1.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-A1-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-A1-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

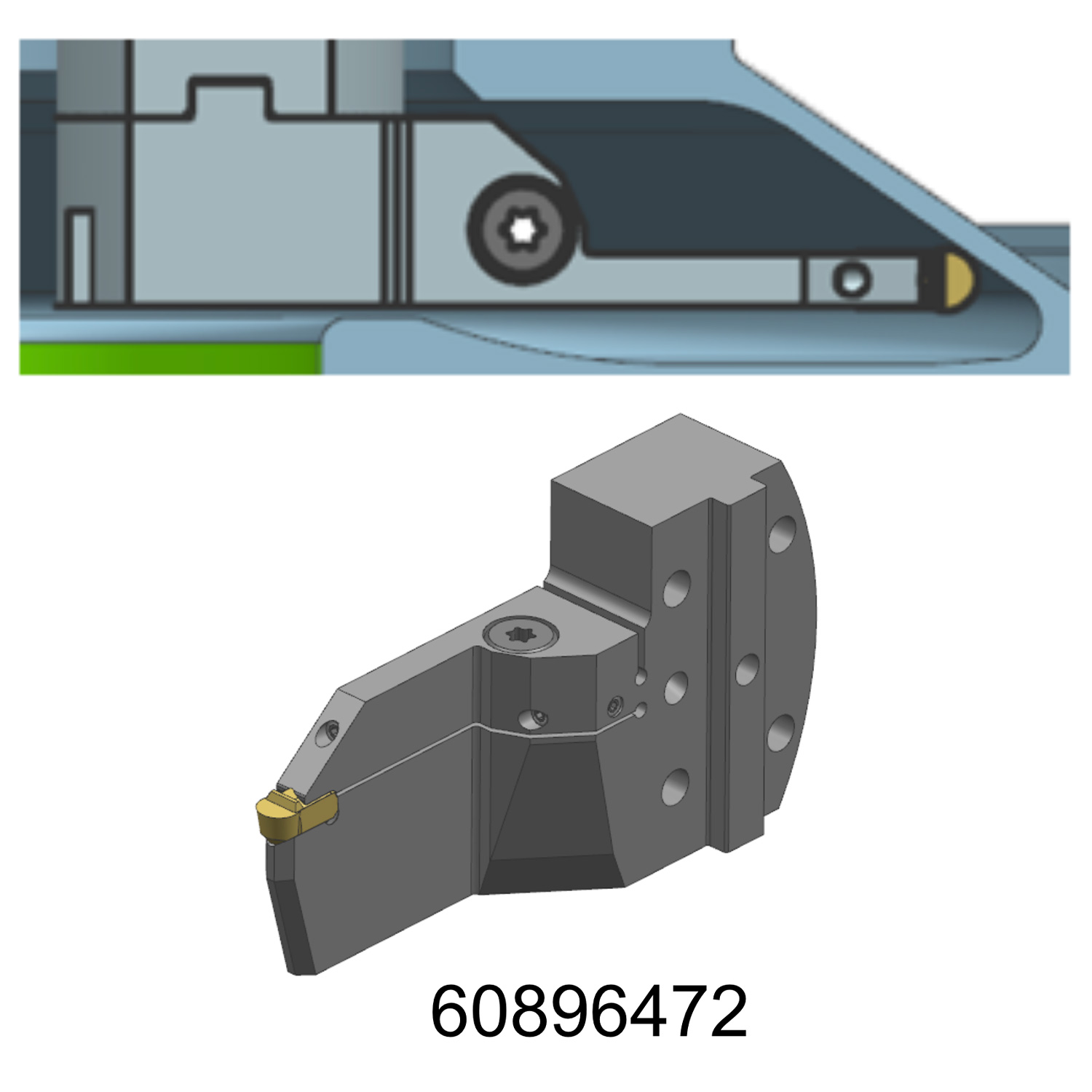

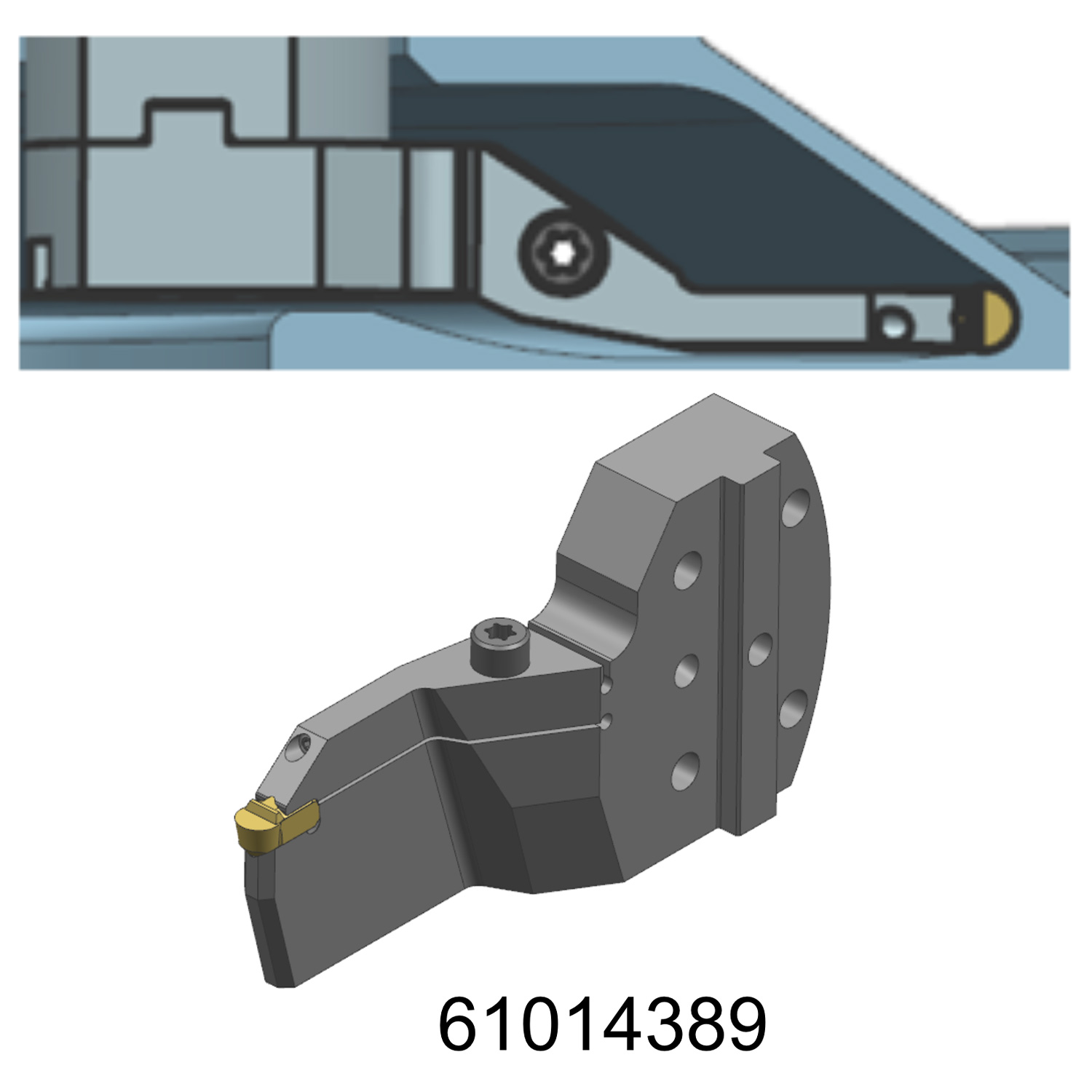

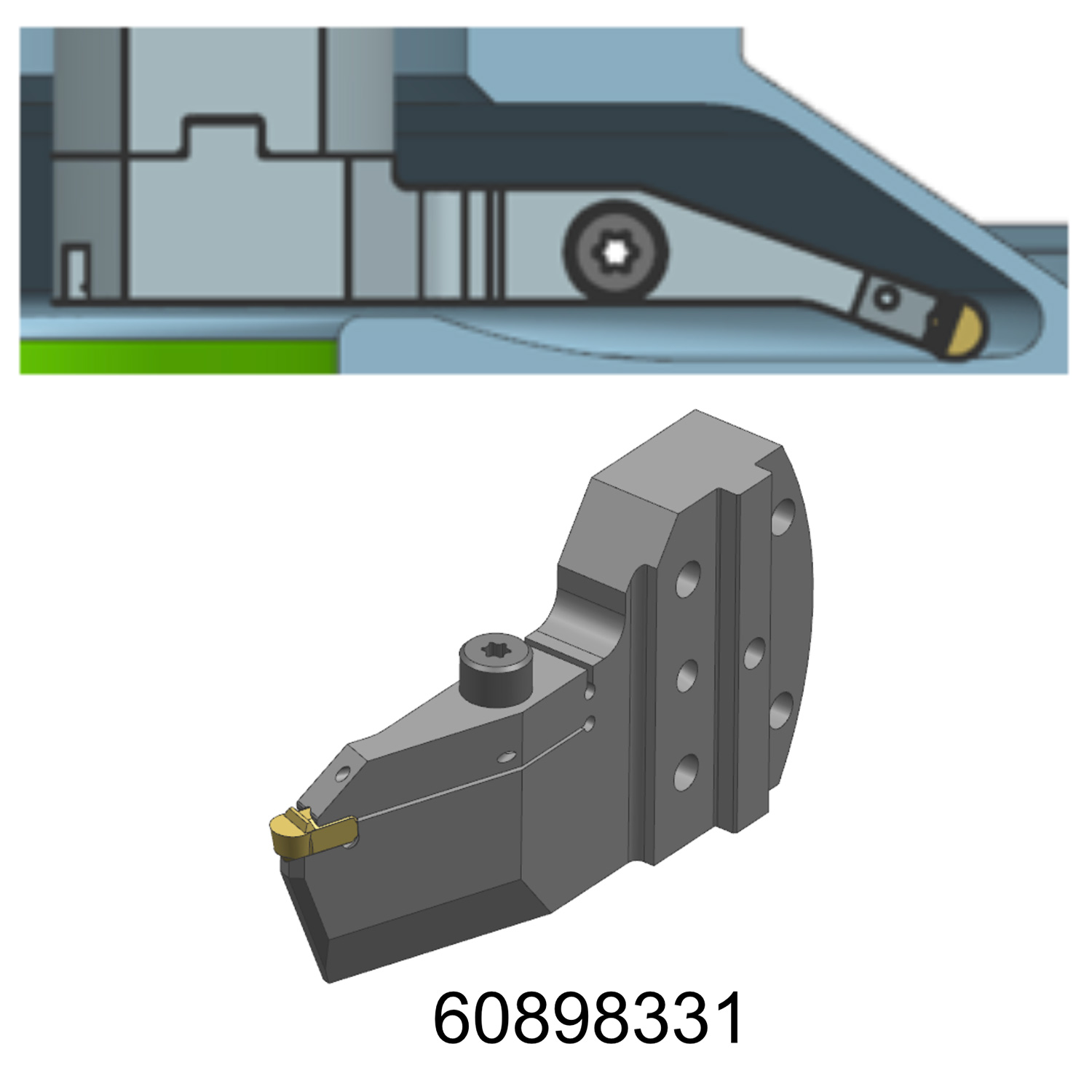

<ul class="wp-block-list"><li>Special blades with Beyond Evolution coolant</li><li>Coolant connection between the holder and the blades with a O-ring</li><li>Machining on a vertical lathe</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>6AL-4V Titanium</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal Modular PSC63 Cutting Unit</td></tr><tr><td><strong>Drawing Number</strong></td><td>60898332</td></tr><tr><td><strong>Type of Comp.</strong></td><td>Forged</td></tr><tr><td><strong>Operation</strong></td><td>Finishing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Insert</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.beyond-evolution-grooving-inserts-gup-full-radius-precision-ground-metric.5988861.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal ER0800M08P00GUP &#8211; K313</a></td></tr><tr><td><strong>Vc</strong></td><td>65,5 m/min (215 SFM) </td></tr><tr><td><strong>F</strong></td><td>0,13 mm/rev (.005 IPR)</td></tr><tr><td><strong>Ap</strong></td><td>0,25 &#8211; 0,13 mm (.01 &#8211; .005 DOC)</td></tr><tr><td><strong>Pressure</strong></td><td>70 bar</td></tr><tr><td><strong>Coolant supply</strong></td><td>Through Blade</td></tr><tr><td><strong>Objective</strong></td><td>Fast and Reliable Process</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 20 min</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B2.jpg" alt="" class="wp-image-1203" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B3.jpg" alt="" class="wp-image-1204" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B4.jpg" alt="" class="wp-image-1205" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B4.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B4-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B4-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B5.jpg" alt="" class="wp-image-1206" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B5.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B5-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E7-B5-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Rotor: Turning

Finishing

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	6AL-4V Titanium
Tool Description	Kennametal Modular PSC63 Cutting Unit
Drawing Number	60898332
Type of Comp.	Forged
Operation	Finishing
Cutting Edge	Carbide
Insert	Kennametal ER0800M08P00GUP – K313
Vc	65,5 m/min (215 SFM)
F	0,13 mm/rev (.005 IPR)
Ap	0,25 – 0,13 mm (.01 – .005 DOC)
Pressure	70 bar
Coolant supply	Through Blade
Objective	Fast and Reliable Process
Tool Life	~ 20 min
