Notes

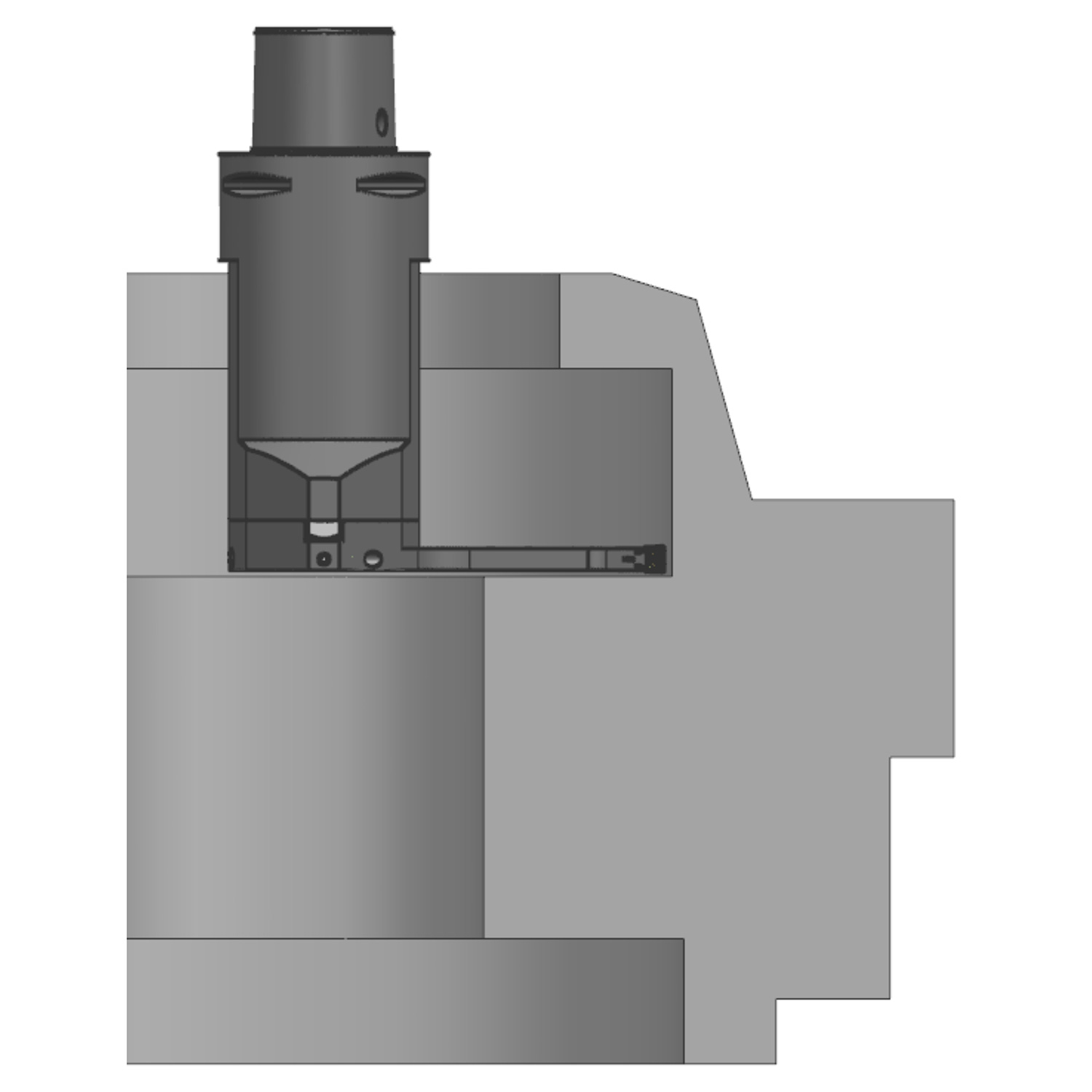

- Alternative plunge
- Deep groove: CD = 95
Solution Specifications
| Material | 6AL-4V Titanium |

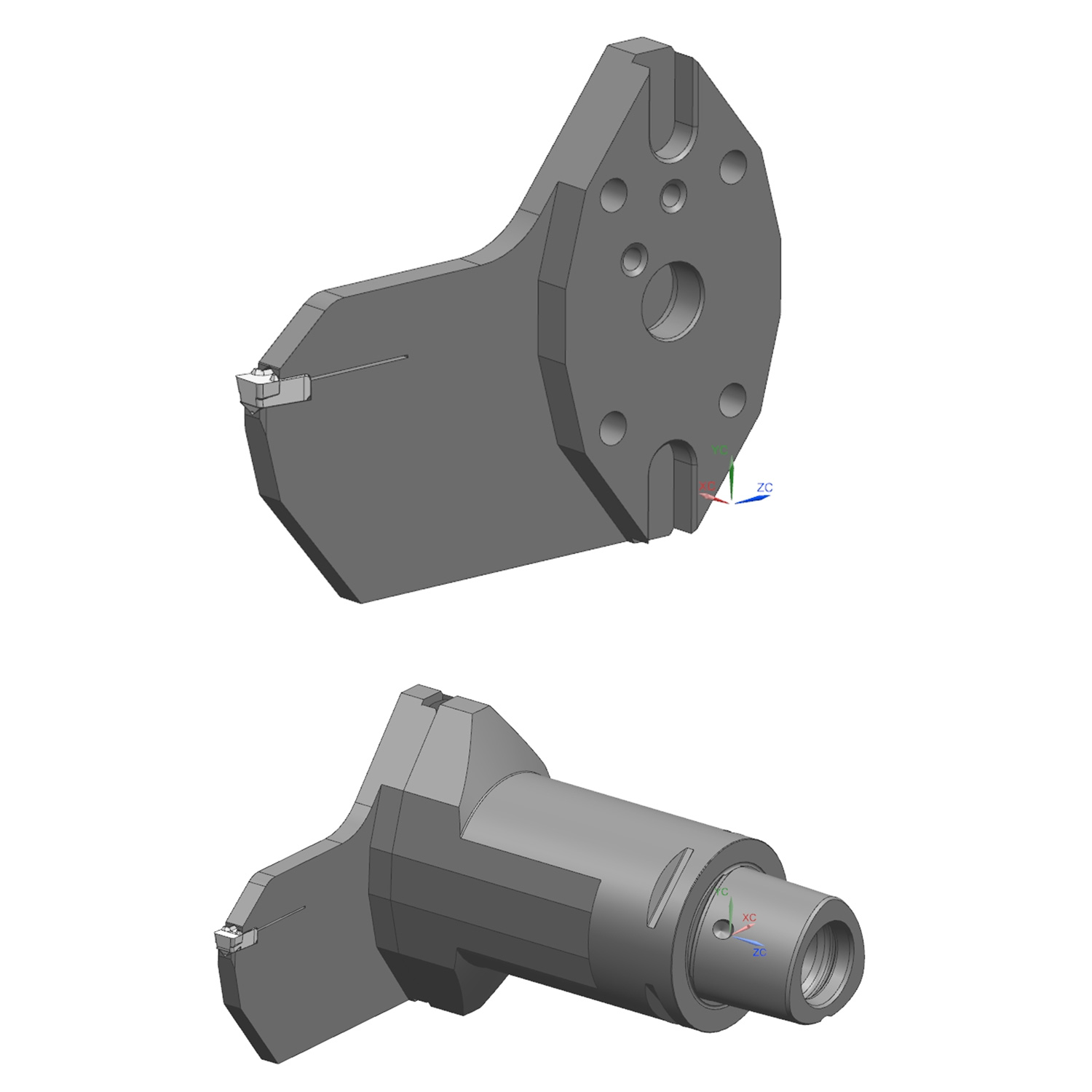

| Tool Description | Kennametal Modular PSC80 UHP Cutting Unit |
| Drawing Number | 60745828 |
| Type of Comp. | Pre-machined |
| Operation | Roughing |
| Cutting Edge | Carbide |
| Insert | Kennametal EG1000M10P12GUP – KCU10 |
| Vc | 90 m/min (300 SFM) |
| F | 0,28 mm/rev (.011 IPR) |
| W | 10 mm (.4 in) |
| Pressure | 350 bar |
| Coolant supply | Internal BE System |
| Objective | High Productivity |
| Tool Life | ~ 15 min |
