Notes
- Radius 5 to finish
- Limited weight < 6kg
- Inserts selection was RCMT (2 cutting edges) -> versatile cover all the component as external and internal machining

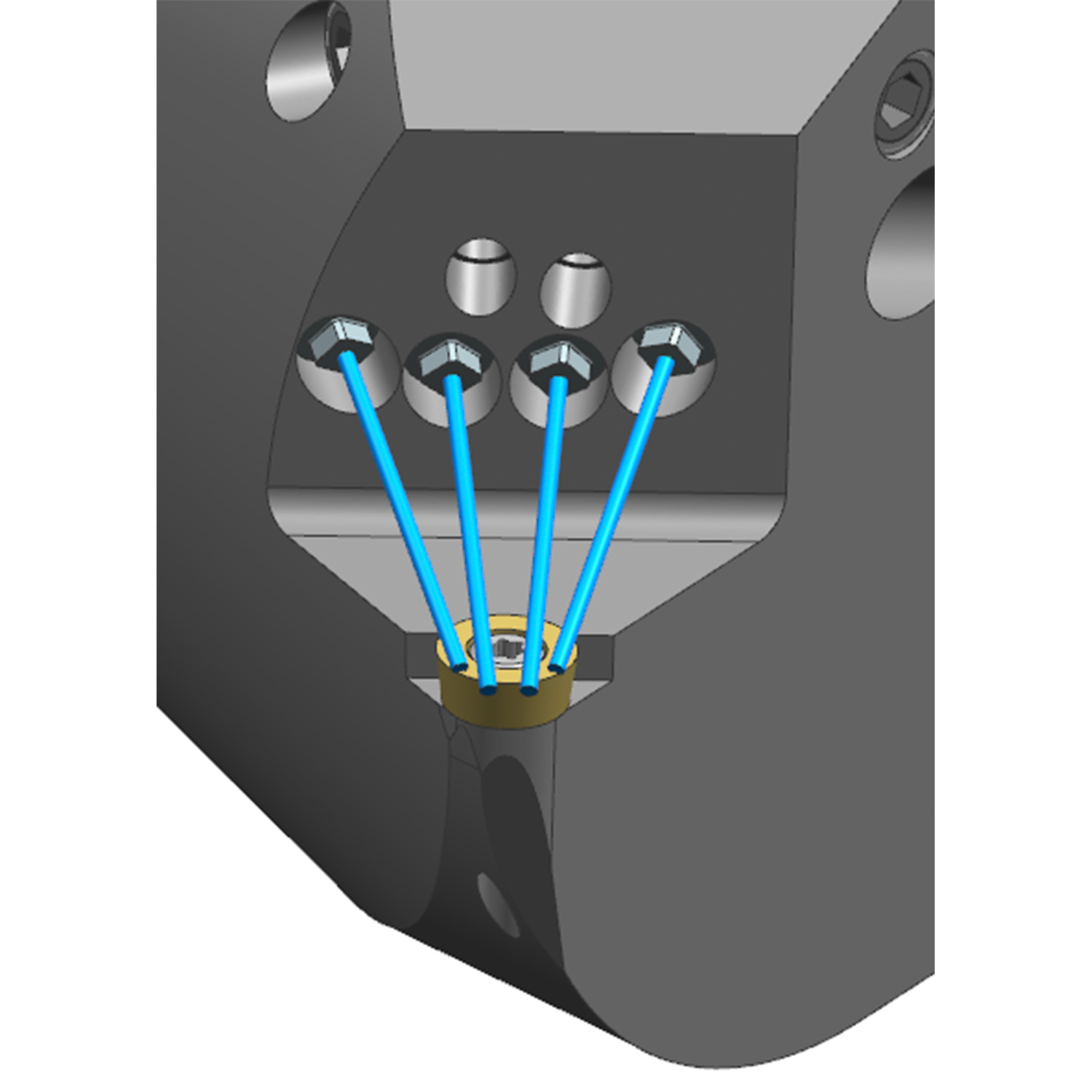

- 4 nozzles Ø1 -> cover 160° cutting edge arc
Solution Specifications
| Material | 6AL-4V Titanium |

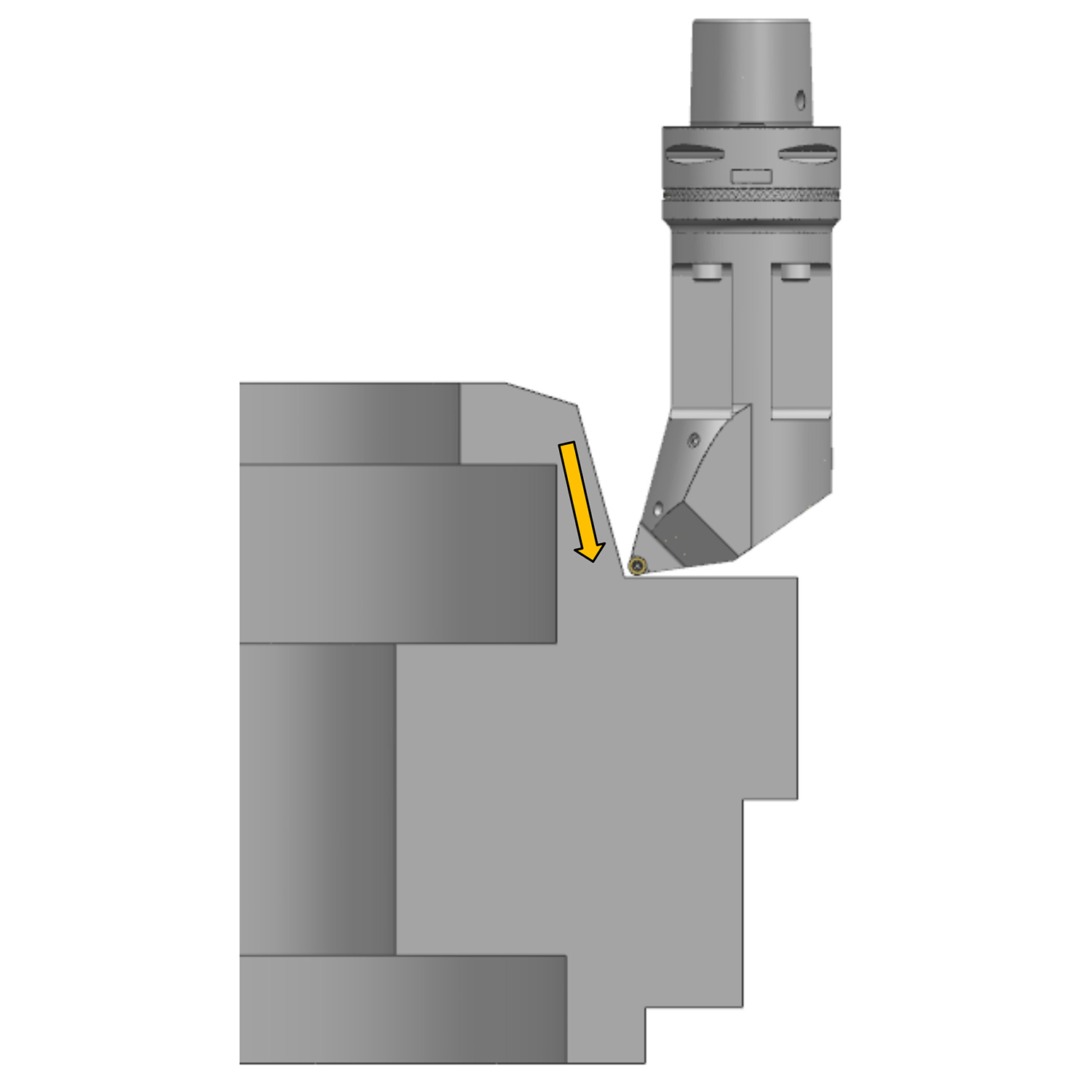

| Tool Description | Kennametal Monobloc PSC80 UHP Cutting Unit |
| Drawing Number | 60596893 |
| Type of Comp. | Forged |
| Operation | Finishing |
| Cutting Edge | Carbide |
| Insert | Kennametal RCMT0803M0 – K313 |
| Vc | 70 m/min (230 SFM) |
| F | 0,3 mm/rev (.012 IPR) |
| Ap | 0,5 mm (.020 DOC) |
| Pressure | 110 bar |
| Coolant supply | Through Nozzles (QPM HPC) |
| Objective | Modular Head with Hirth Serration |
| Tool Life | ~ 20 min |
