<p>Inside information, strategies, feeds/speeds, tooling, and techniques to give you a robust knowledge of how to manufacture aerospace engine components.</p>
<p><strong>POWERED BY KENNAMETAL.</strong></p>


Aerospace Engine

INTERMEDIATE CASE


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-A1.png" alt="" class="wp-image-1476" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-A1.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-A1-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-A1-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

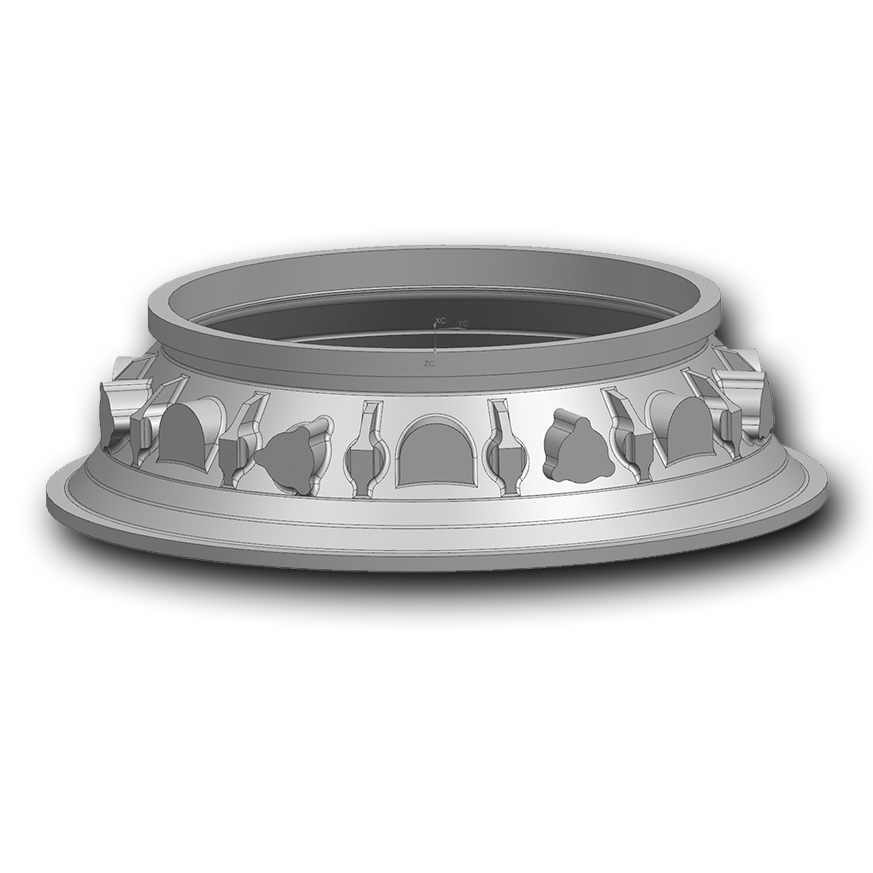

<ul class="wp-block-list"><li>4th Roughing operation: Remove maximum stock material wherever it is possible</li><li>Area machined where the 3rd cutter cannot cover</li><li>Face milling operation between the bosses</li><li>Maximum productivity</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>Inconel 718</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal KIPR Ø25 Z3</td></tr><tr><td><strong>Kennametal MM#</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.kipr-rp-screw-on-end-mills.4052843.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">MM 4052843</a></td></tr><tr><td><strong>Reference</strong></td><td>KIPR025RP09MF03</td></tr><tr><td><strong>Operation</strong></td><td>Roughing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Ceramic</td></tr><tr><td><strong>Insert</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.rpg.5090285.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal RPGN090300T01020</a></td></tr><tr><td><strong>Grade</strong></td><td>KYS30</td></tr><tr><td><strong>Vc</strong></td><td>880 m/min (2900 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,08 mm/z (.003 IPT)</td></tr><tr><td><strong>Ap</strong></td><td>0,5 mm (.02 in)</td></tr><tr><td><strong>Ae</strong></td><td>Variable</td></tr><tr><td><strong>Coolant supply</strong></td><td>Dry Machining</td></tr><tr><td><strong>Objective</strong></td><td>Maximum Production &amp; Time reduction</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 4 min/edge</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D3.jpg" alt="" class="wp-image-1497" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D2.jpg" alt="" class="wp-image-1496" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E25-D2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Intermediate Case: Milling

Operation 4

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	Inconel 718

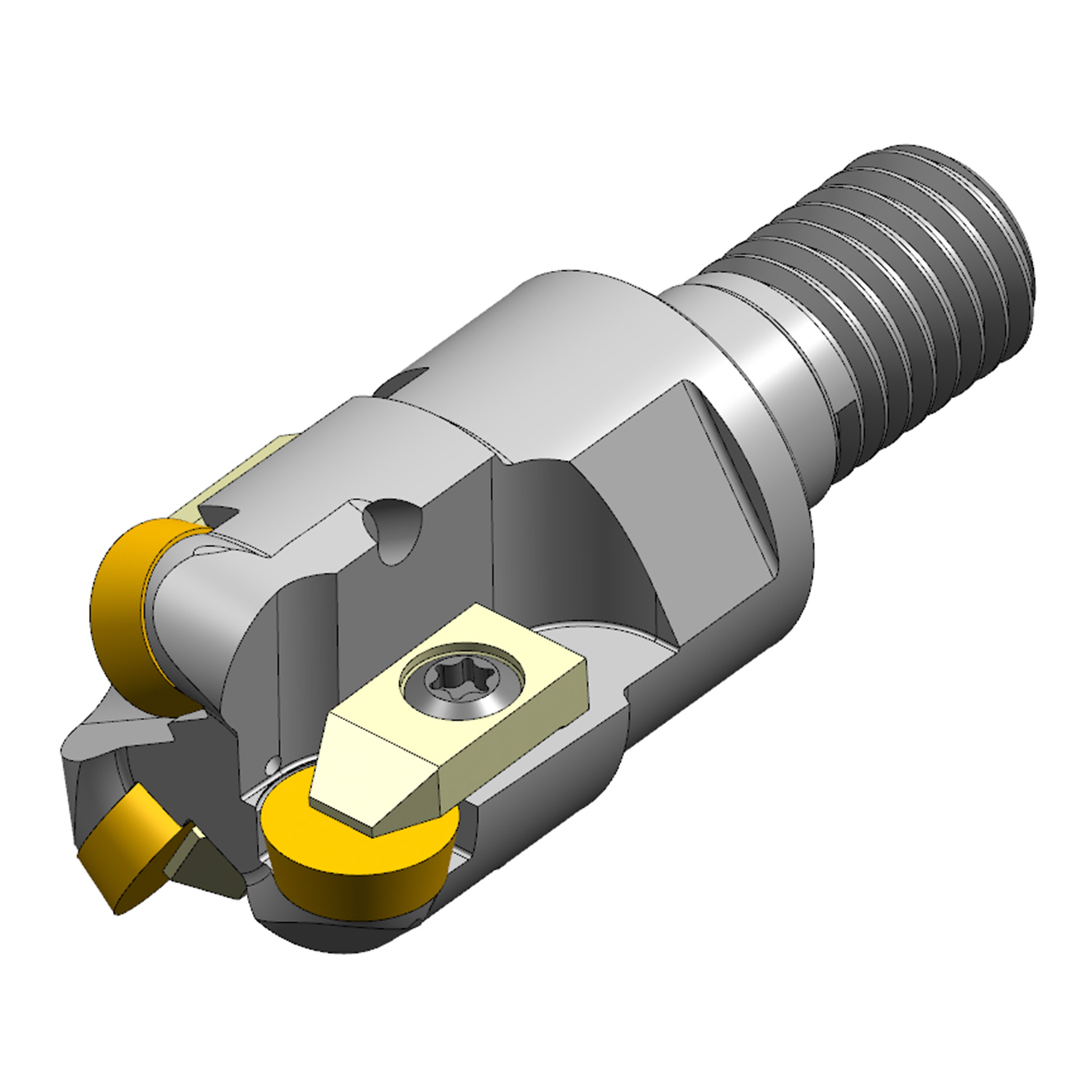

Tool Description	Kennametal KIPR Ø25 Z3
Kennametal MM#	MM 4052843
Reference	KIPR025RP09MF03
Operation	Roughing
Cutting Edge	Ceramic
Insert	Kennametal RPGN090300T01020
Grade	KYS30
Vc	880 m/min (2900 SFM)
Fz	0,08 mm/z (.003 IPT)
Ap	0,5 mm (.02 in)
Ae	Variable
Coolant supply	Dry Machining
Objective	Maximum Production & Time reduction
Tool Life	~ 4 min/edge
