Aerospace Engine

ROTOR


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-A1.png" alt="" class="wp-image-1436" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-A1.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-A1-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-A1-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>



<ul class="wp-block-list"><li>4th operation -&gt; Backward Sinking</li><li>Create chamfer on backside</li><li>Coolant groove on shank</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>Inconel 718</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal Backward Sinking Tool + HSK100 Whistle Notch Adapter</td></tr><tr><td><strong>Kennametal MM#</strong></td><td>MM 6581535 (Special, not listed on site)</td></tr><tr><td><strong>Operation</strong></td><td>Backward Sinking</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Grade</strong></td><td>KCSM15</td></tr><tr><td><strong>Vc</strong></td><td>30 m/min (98,4 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,03 mm/t (.00118 IPT) -z1</td></tr><tr><td><strong>Ap</strong></td><td>0,2 mm (.078 in)</td></tr><tr><td><strong>Ae</strong></td><td>0,2 mm (.078 in)</td></tr><tr><td><strong>Power / Torque</strong></td><td>0,04 kW / 0,31 N.m</td></tr><tr><td><strong>Coolant supply</strong></td><td>Coolant Groove</td></tr><tr><td><strong>Pressure</strong></td><td>80 bar, 7% Emulsion</td></tr><tr><td><strong>Objective</strong></td><td>Modernize process</td></tr><tr><td><strong>Tool Life</strong></td><td>93 bores (not end of tool life)</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D2.jpg" alt="" class="wp-image-1461" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D3.jpg" alt="" class="wp-image-1462" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D4.jpg" alt="" class="wp-image-1463" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D4.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D4-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E24-D4-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Rotor: Drilling

4th Operation

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	Inconel 718

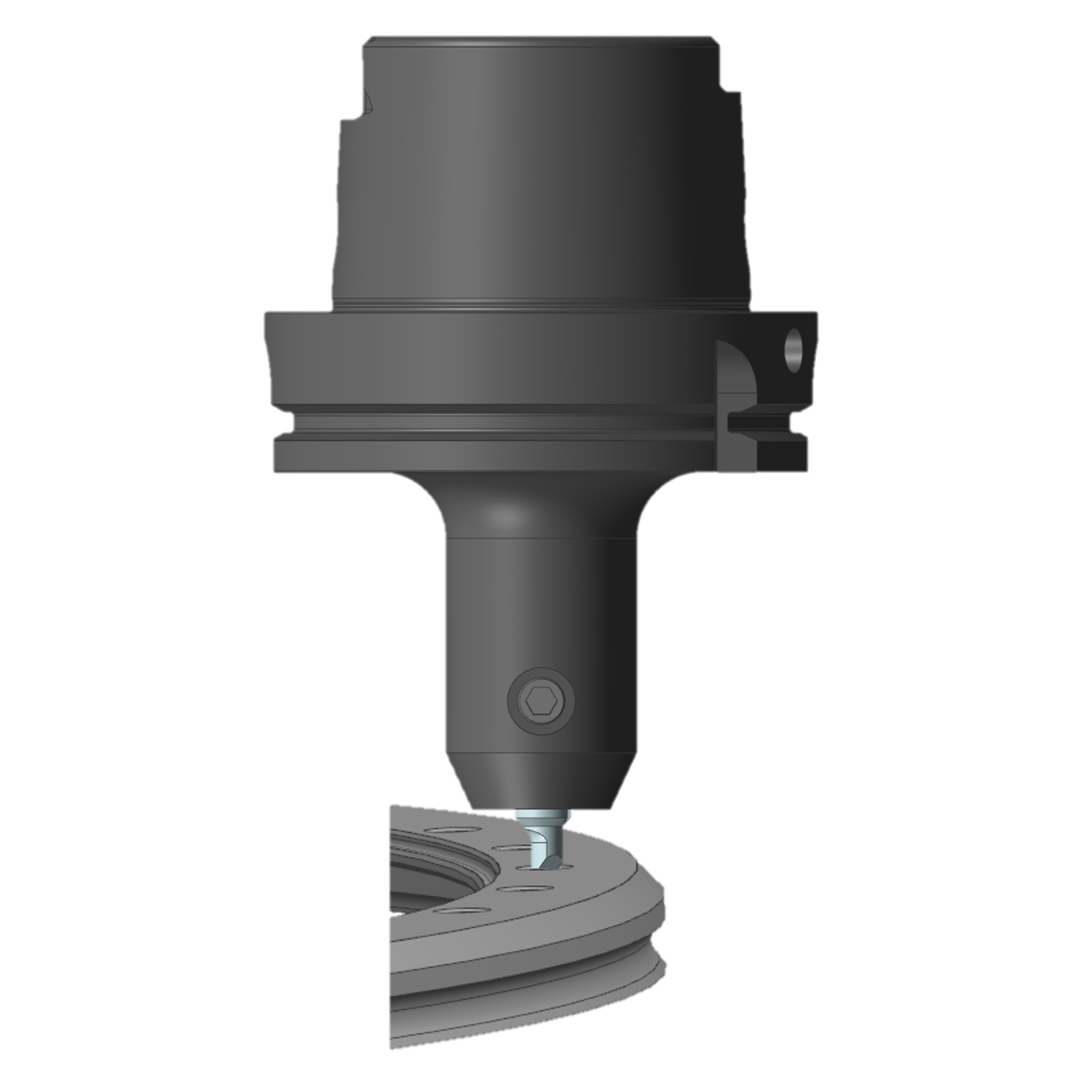

Tool Description	Kennametal Backward Sinking Tool + HSK100 Whistle Notch Adapter
Kennametal MM#	MM 6581535 (Special, not listed on site)
Operation	Backward Sinking
Cutting Edge	Carbide
Grade	KCSM15
Vc	30 m/min (98,4 SFM)
Fz	0,03 mm/t (.00118 IPT) -z1
Ap	0,2 mm (.078 in)
Ae	0,2 mm (.078 in)
Power / Torque	0,04 kW / 0,31 N.m
Coolant supply	Coolant Groove
Pressure	80 bar, 7% Emulsion
Objective	Modernize process

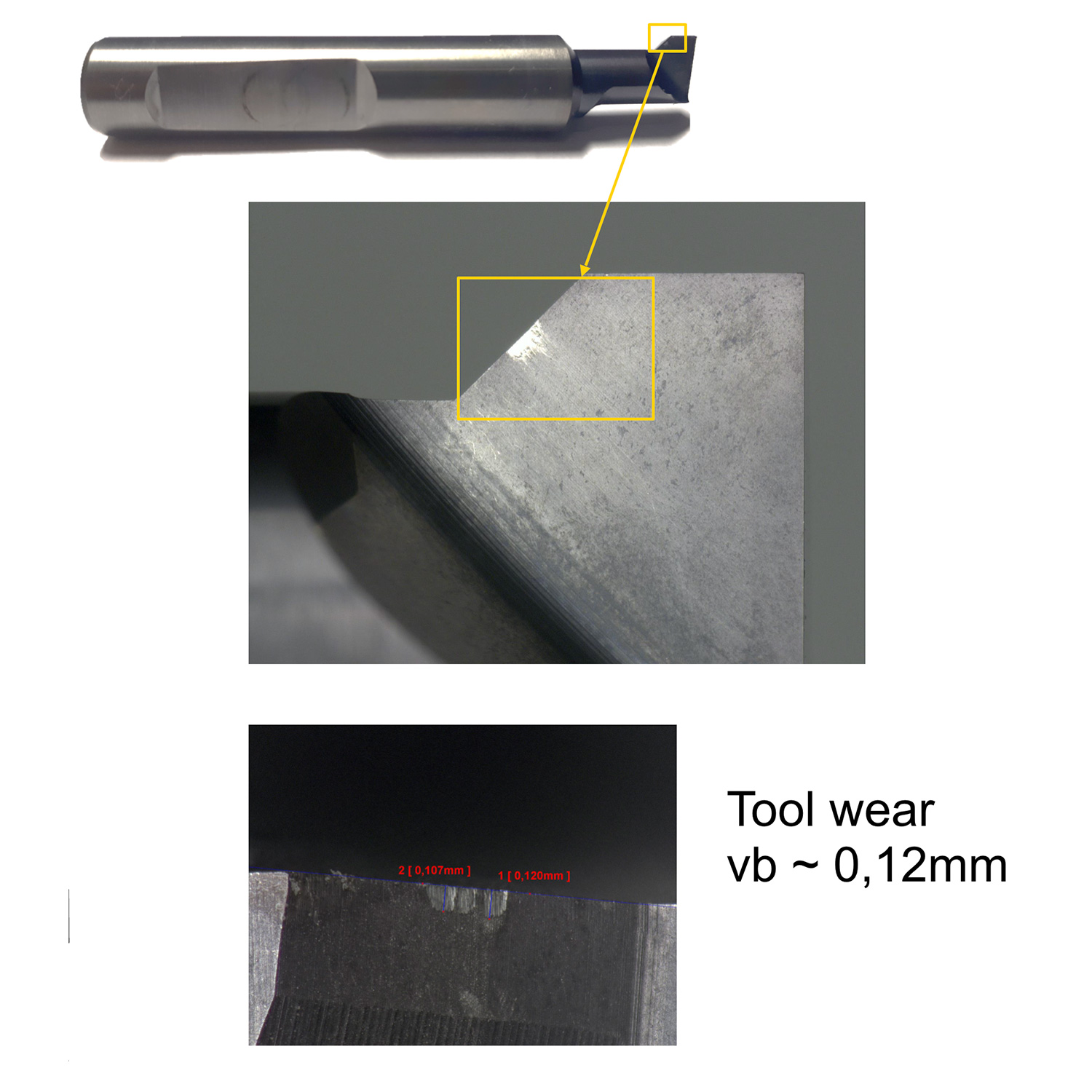

Tool Life	93 bores (not end of tool life)
