Notes

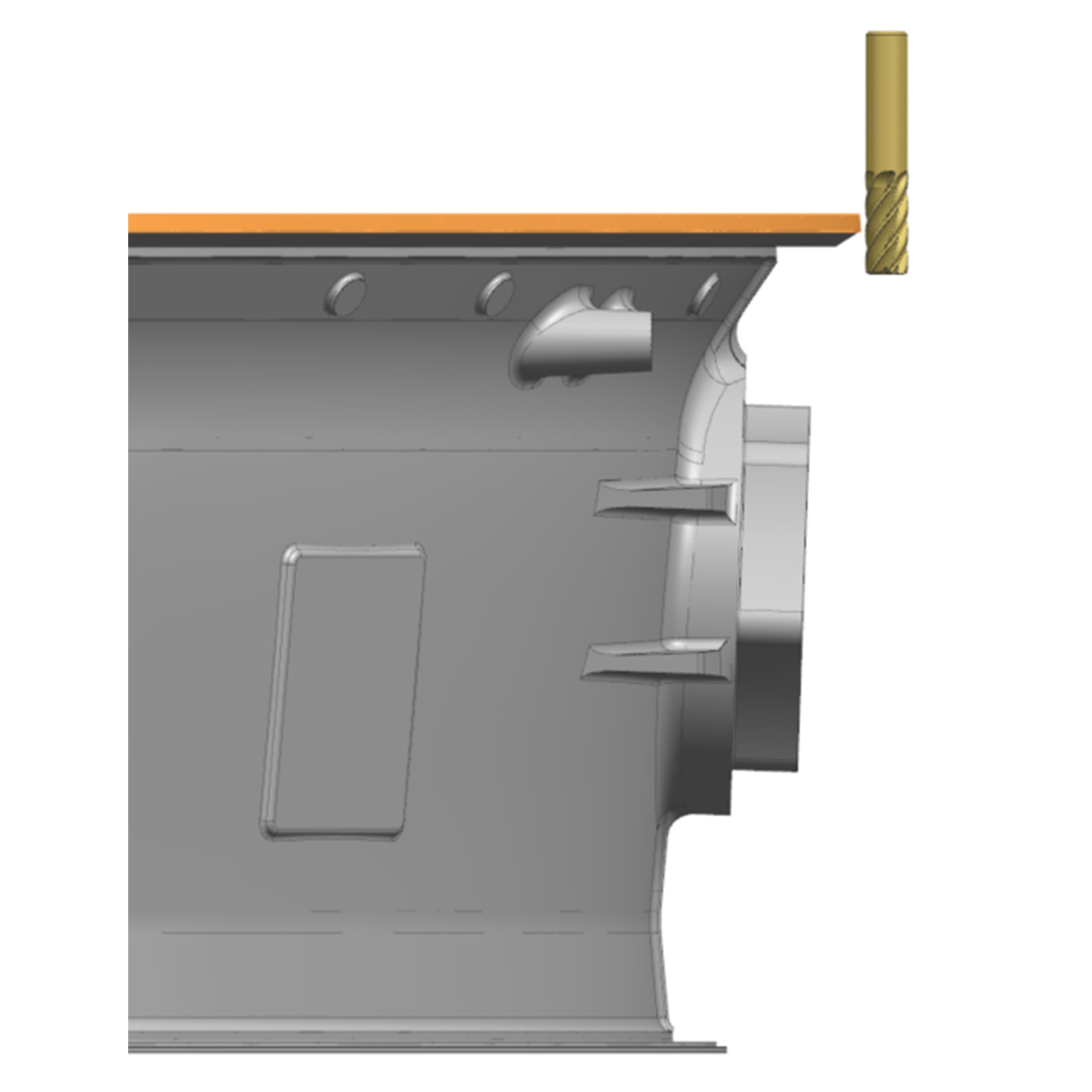

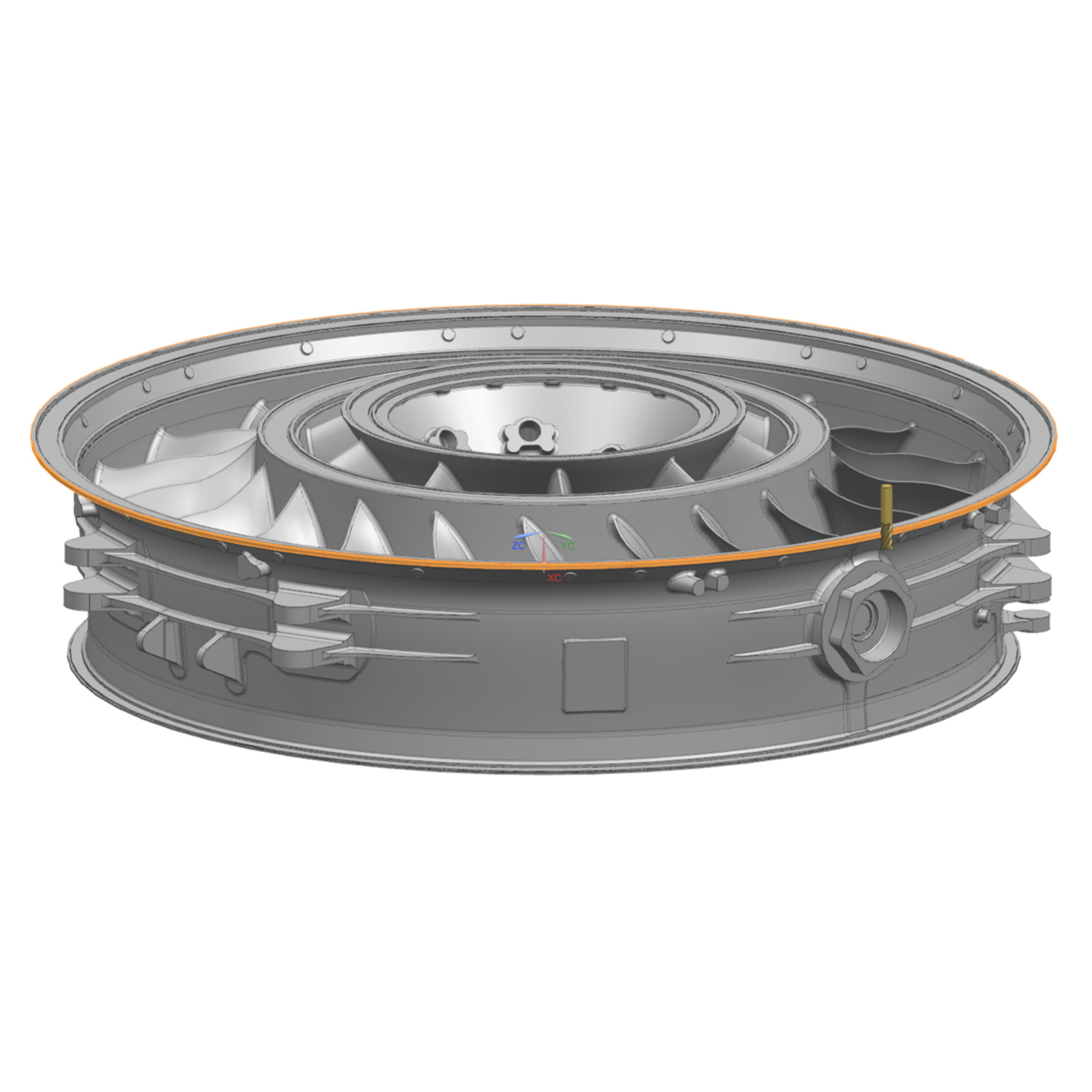

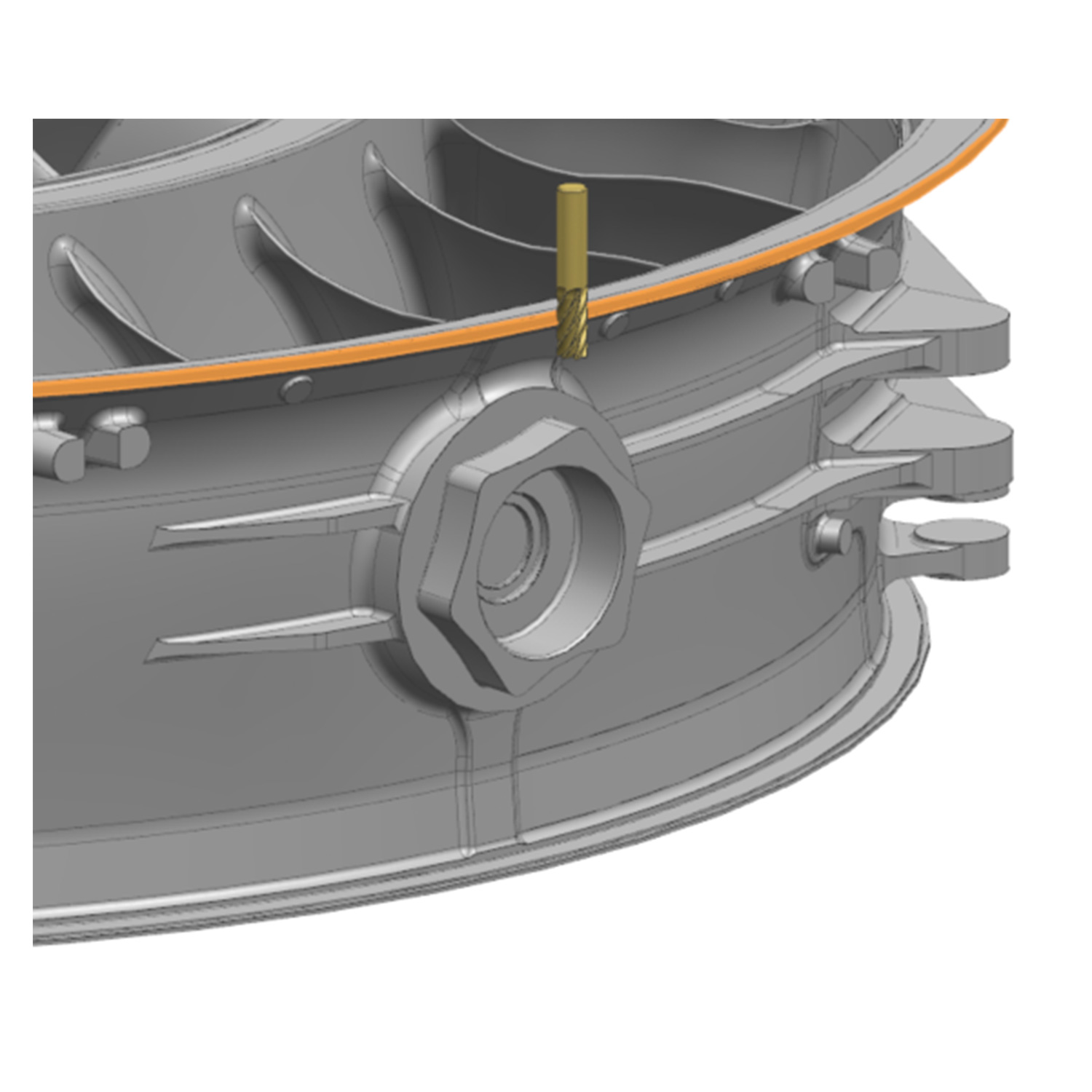

- Roughing milling operation by dynamic machining (small ae; high ap with finishing cutting speed)
- Additional pass for finishing Ae = 0,5mm
- Reduce vibration
- Reduce cutting time
Solution Specifications
| Material | 6AL-4V Titanium |
| Tool Description | Kennametal Harvi III Ø16 Z6 |
| Kennametal MM# | MM 5350339 |
| Reference | UJDE1600A6ARF |
| Operation | Roughing & Finishing |
| Cutting Edge | Carbide |
| Grade | KCSM15 |
| Vc | 90 m/min (300 SFM) |
| Fz | 0,1 mm/z (.004 IPT) |
| Ap | 32 mm (1.25 in) |
| Ae | 1 mm (0.04 in) |
| Power / Torque | 1,8 kW / 10 N.m |
| MRR | 34 cm³/min (2.1 in³/min) |
| Coolant supply | External |
| Objective | Dynamic Machining |
| Tool Life | ~ 90 min |
