Aerospace Engine

FLAME TUBE


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-A1.png" alt="" class="wp-image-1380" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-A1.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-A1-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-A1-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

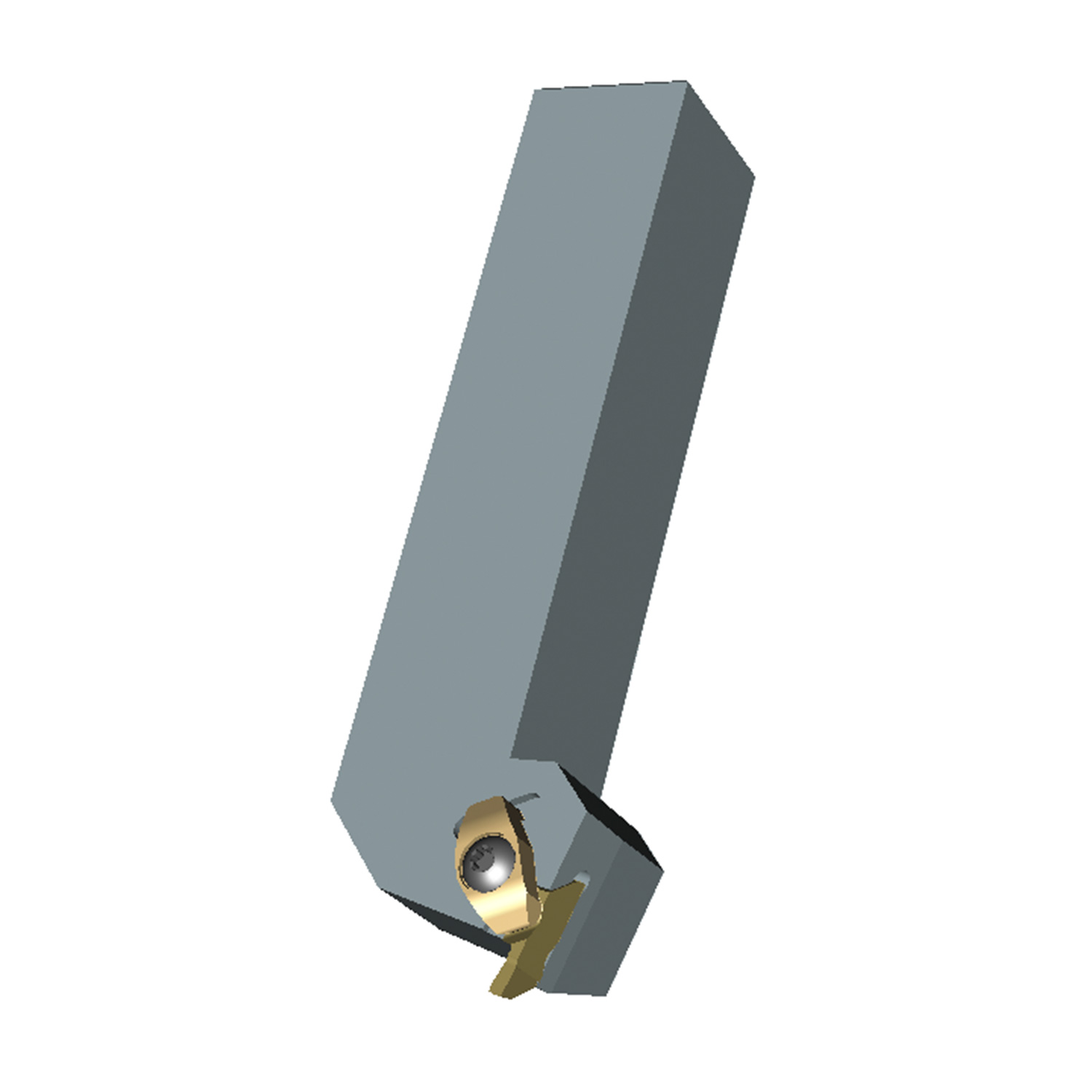

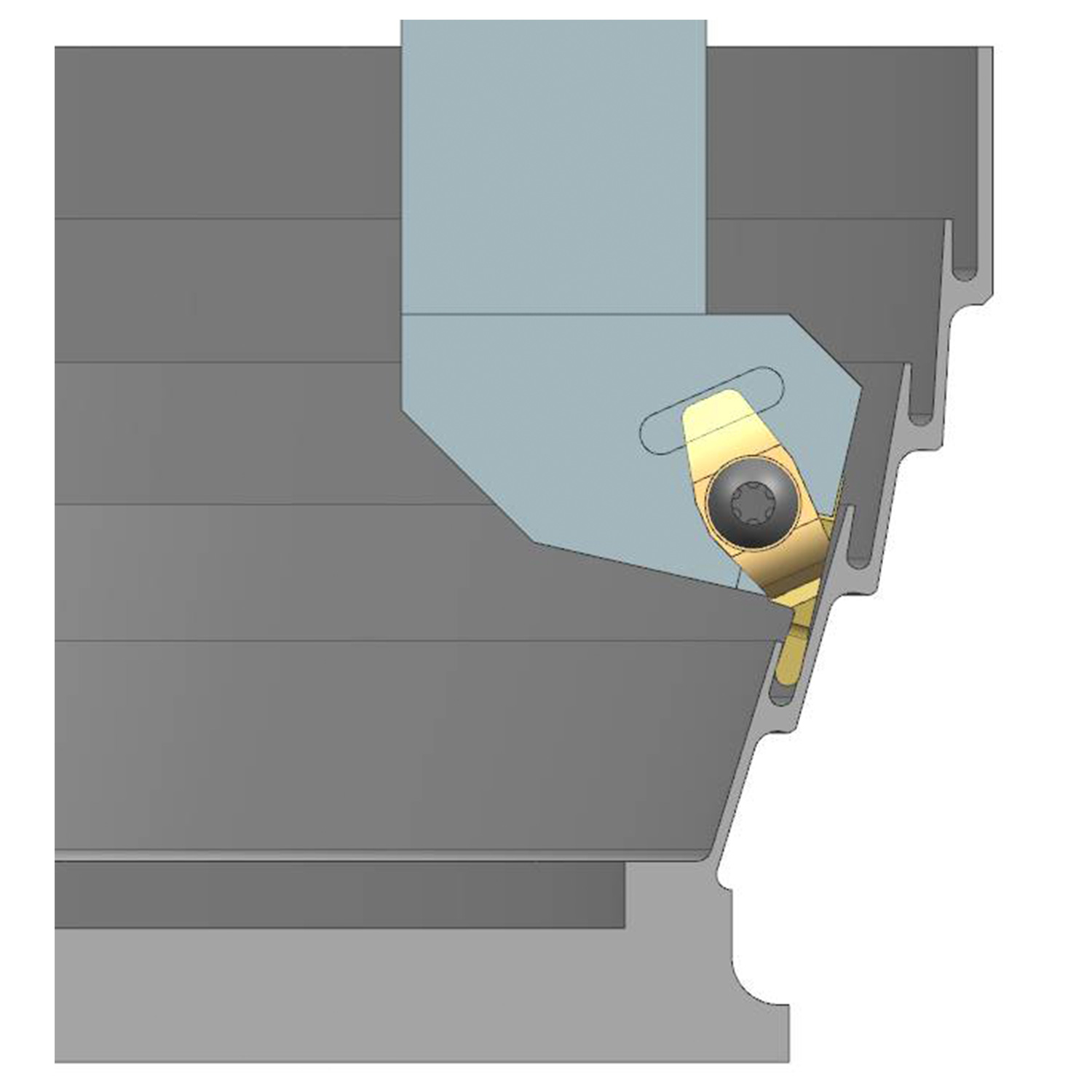

<ul class="wp-block-list"><li>Two tools to complete one set groove</li><li>TN deep grooving insert with +4° rake for chip control</li><li>Precision ground and sharp cutting edges for smooth machining</li><li>High MRR than competition</li><li>Superior surface finish and no tool marks</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>Inconel HX</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal Sq. Shank TN Grooving Tool</td></tr><tr><td><strong>Drawing Number</strong></td><td>2704873 &amp; 2698181</td></tr><tr><td><strong>Type of Comp.</strong></td><td>Pre-machined</td></tr><tr><td><strong>Operation</strong></td><td>Finish Grooving</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Insert</strong></td><td>Kennametal TN Special</td></tr><tr><td><strong>Vc</strong></td><td>33 m/min (108 SFM) </td></tr><tr><td><strong>F</strong></td><td>0,12 mm/rev (.005 IPR)</td></tr><tr><td><strong>Ap</strong></td><td>2,4 mm (.100 DOC)</td></tr><tr><td><strong>Pressure</strong></td><td>20 bar</td></tr><tr><td><strong>Coolant supply</strong></td><td>External</td></tr><tr><td><strong>Objective</strong></td><td>ID Deep Grooving</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 10 min</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B3.jpg" alt="" class="wp-image-1389" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B2.jpg" alt="" class="wp-image-1388" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E19-B2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Flame Tube: Turning

Finishing

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	Inconel HX
Tool Description	Kennametal Sq. Shank TN Grooving Tool
Drawing Number	2704873 & 2698181
Type of Comp.	Pre-machined
Operation	Finish Grooving
Cutting Edge	Carbide
Insert	Kennametal TN Special
Vc	33 m/min (108 SFM)
F	0,12 mm/rev (.005 IPR)
Ap	2,4 mm (.100 DOC)
Pressure	20 bar
Coolant supply	External
Objective	ID Deep Grooving
Tool Life	~ 10 min
