Notes

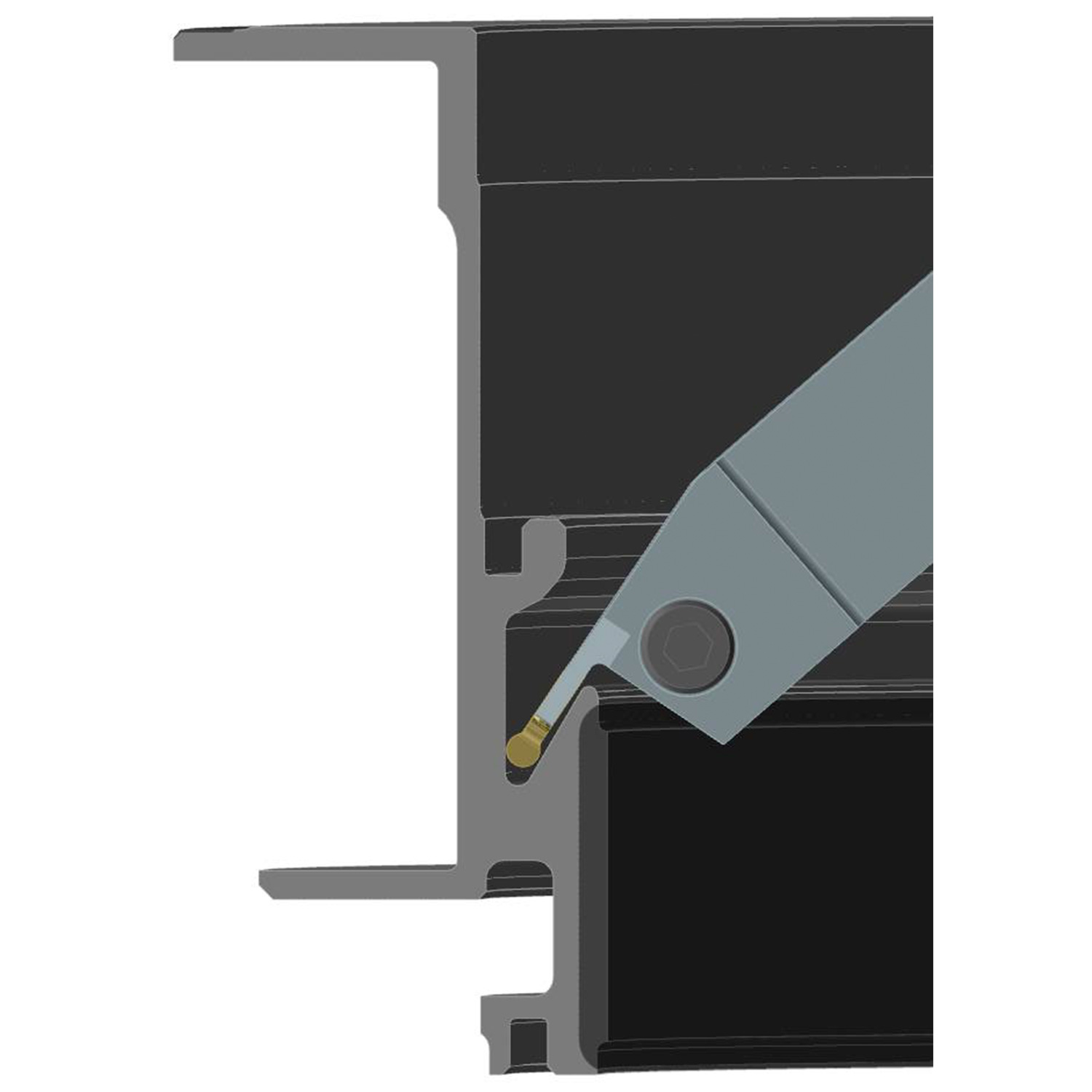

- Angular approach to machine ID face groove profile finishing
- A3-DF geometry for chip control

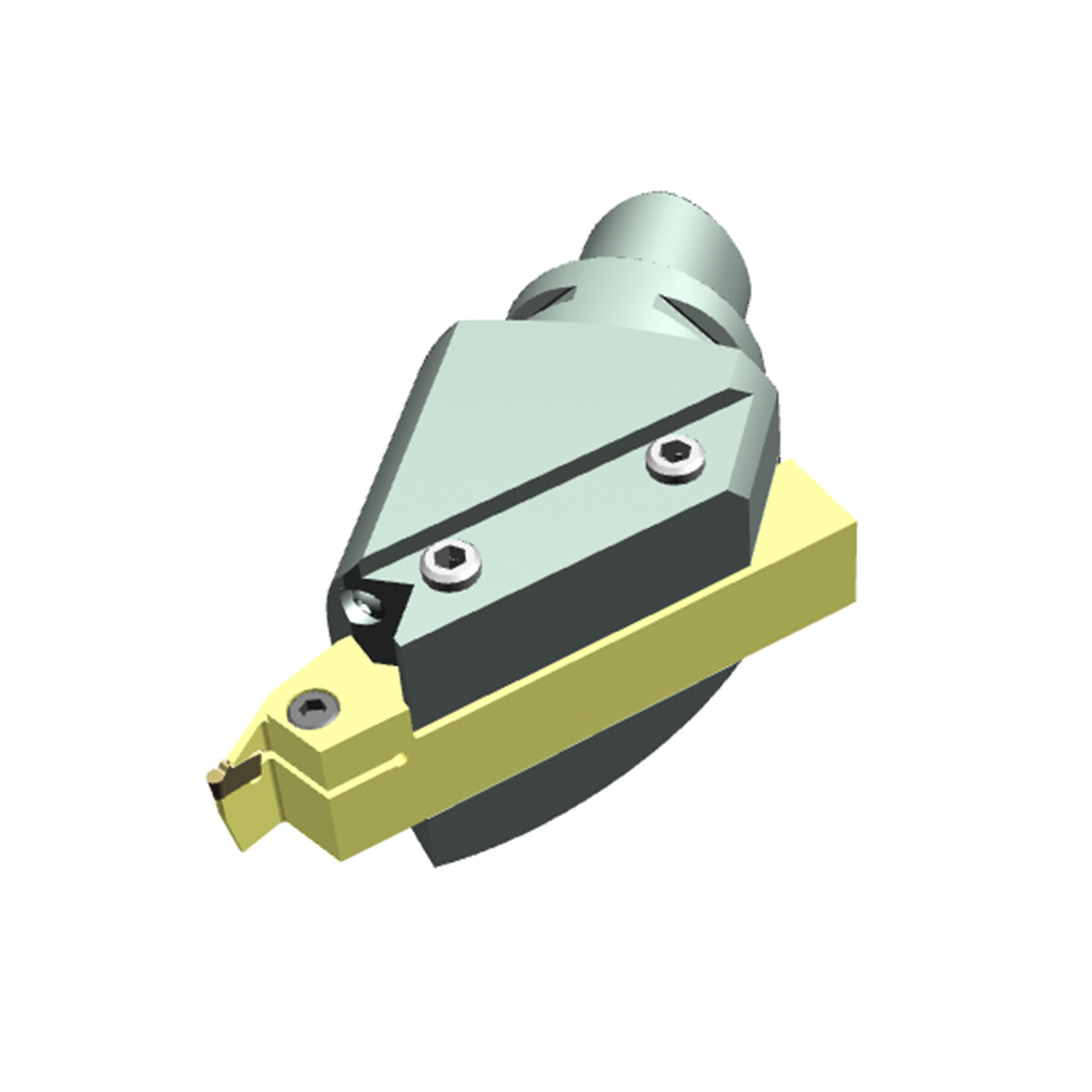

- Standard PSC adapter with custom tool holder for approach
- External coolant through adapter nozzle
Solution Specifications
| Material | Martensitic Stainless Steel |
| Tool Description | Kennametal A3 Tool holder with PSC50 angle adapter |
| Reference | 61043803 |
| Type of Comp. | Pre-machined |
| Operation | Finishing ID groove profile |
| Cutting Edge | Carbide |
| Insert | Kennametal A3R093103P00DF – KCU25 |
| Vc | 80 m/min (262 SFM) |
| Fz | 0,08 mm/rev (.003 IPR) |
| Ap | 0,25 mm (.010 DOC) |
| Pressure | 28 bar |
| Coolant supply | External through adapter nozzle |
| Objective | ID Face Groove Profile |
| Tool Life | ~ 12 min |
