<h2 class="wp-block-heading">Notes</h2>

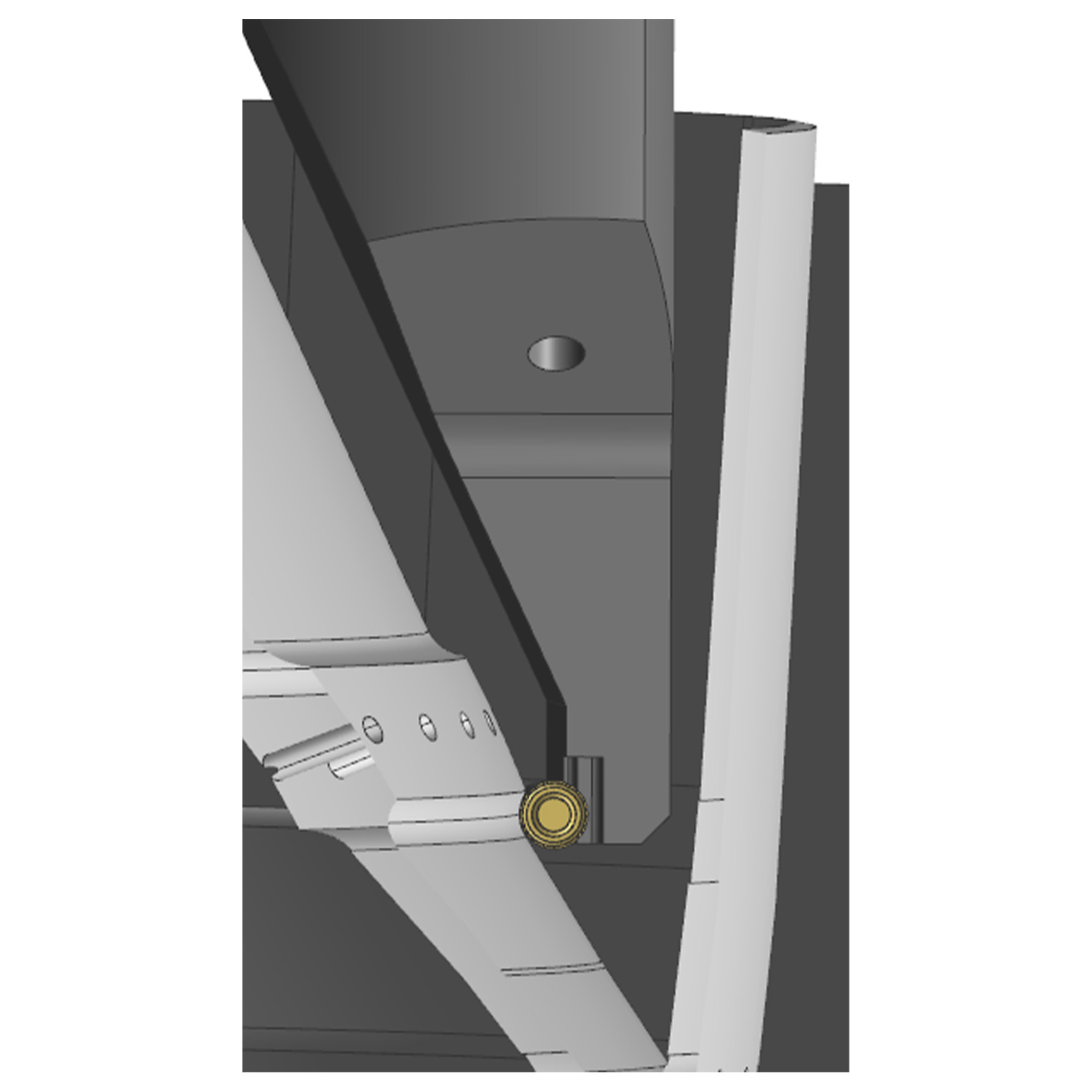

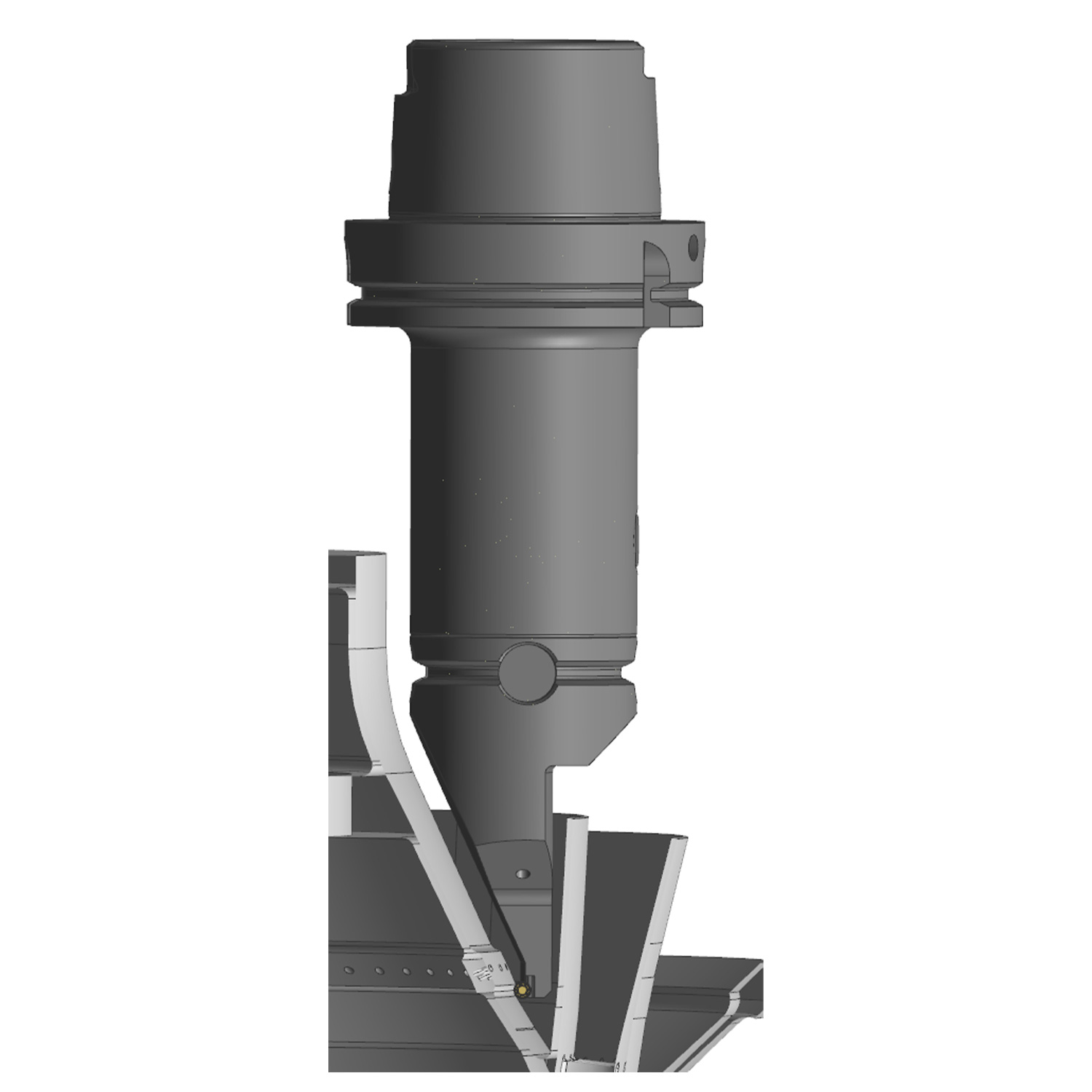

<ul class="wp-block-list"><li>KM63 grooving turning and K-Lock system for deep and cramped area</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>Inconel 718+</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal HSK100A + KM63 Turning Tool</td></tr><tr><td><strong>Drawing Number</strong></td><td>60476691</td></tr><tr><td><strong>Type of Comp.</strong></td><td>Profile-machined</td></tr><tr><td><strong>Operation</strong></td><td>Finishing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Insert</strong></td><td><a href="https://www.kennametal.com/us/en/products/p.rcgk-hp.4050653.html?cid=KMT_ACQ_PSL_PD_AFF_TXT_v1_ti-acd_NA_1046" target="_blank" rel="noreferrer noopener">Kennametal RCGK040300HP &#8211; KCU10</a></td></tr><tr><td><strong>Vc</strong></td><td>35 m/min (115 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,1 mm/rev (.004 IPR)</td></tr><tr><td><strong>Ap</strong></td><td>0,5 mm (.019 DOC)</td></tr><tr><td><strong>Pressure</strong></td><td>80 bar</td></tr><tr><td><strong>Coolant supply</strong></td><td>Coolant Bore</td></tr><tr><td><strong>Objective</strong></td><td>Surface Finish Ra1.6</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 11 min</td></tr></tbody></table></figure>
