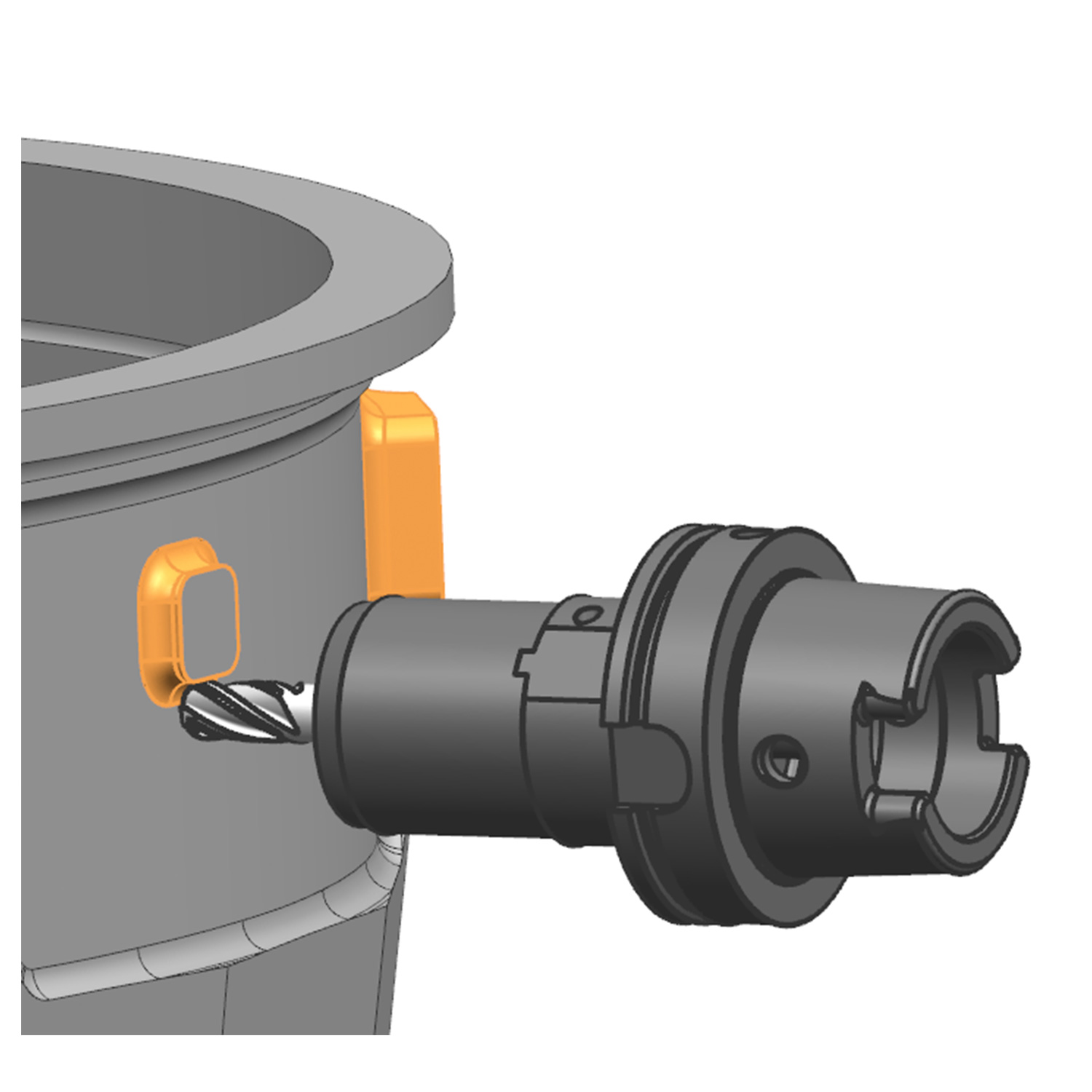

<ul class="wp-block-list"><li>Finish side milling around the external bosses</li><li>Safe process with good chip evacuation</li><li>Radial coolant supply for each cutting edge</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>Inconel 718+</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal SC Endmill D14,5 R6,35 Z4</td></tr><tr><td><strong>Reference</strong></td><td>DWG 60406181</td></tr><tr><td><strong>Operation</strong></td><td>Finishing</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Grade</strong></td><td>KC643M</td></tr><tr><td><strong>Vc</strong></td><td>40 m/min (130 SFM) </td></tr><tr><td><strong>Fz</strong></td><td>0,08 mm/z (.003 IPT)</td></tr><tr><td><strong>Ap</strong></td><td>1 &#8211; 20 mm (0.04 &#8211; 0.78 in)</td></tr><tr><td><strong>Ae</strong></td><td>0,5 &#8211; 1 mm (0.02 &#8211; 0.04 in)</td></tr><tr><td><strong>Power / Torque</strong></td><td>1,9 kW / 21,2 N.m</td></tr><tr><td><strong>MRR</strong></td><td>18,7 cm³/min (1.1 in³/min)</td></tr><tr><td><strong>Coolant supply</strong></td><td>Radial Internal</td></tr><tr><td><strong>Objective</strong></td><td>Finish Side Milling / Safe Process</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 70 min</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H3.jpg" alt="" class="wp-image-1359" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H2.jpg" alt="" class="wp-image-1358" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E16-H2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Case Combustor: Milling

Side Milling

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

Material	Inconel 718+

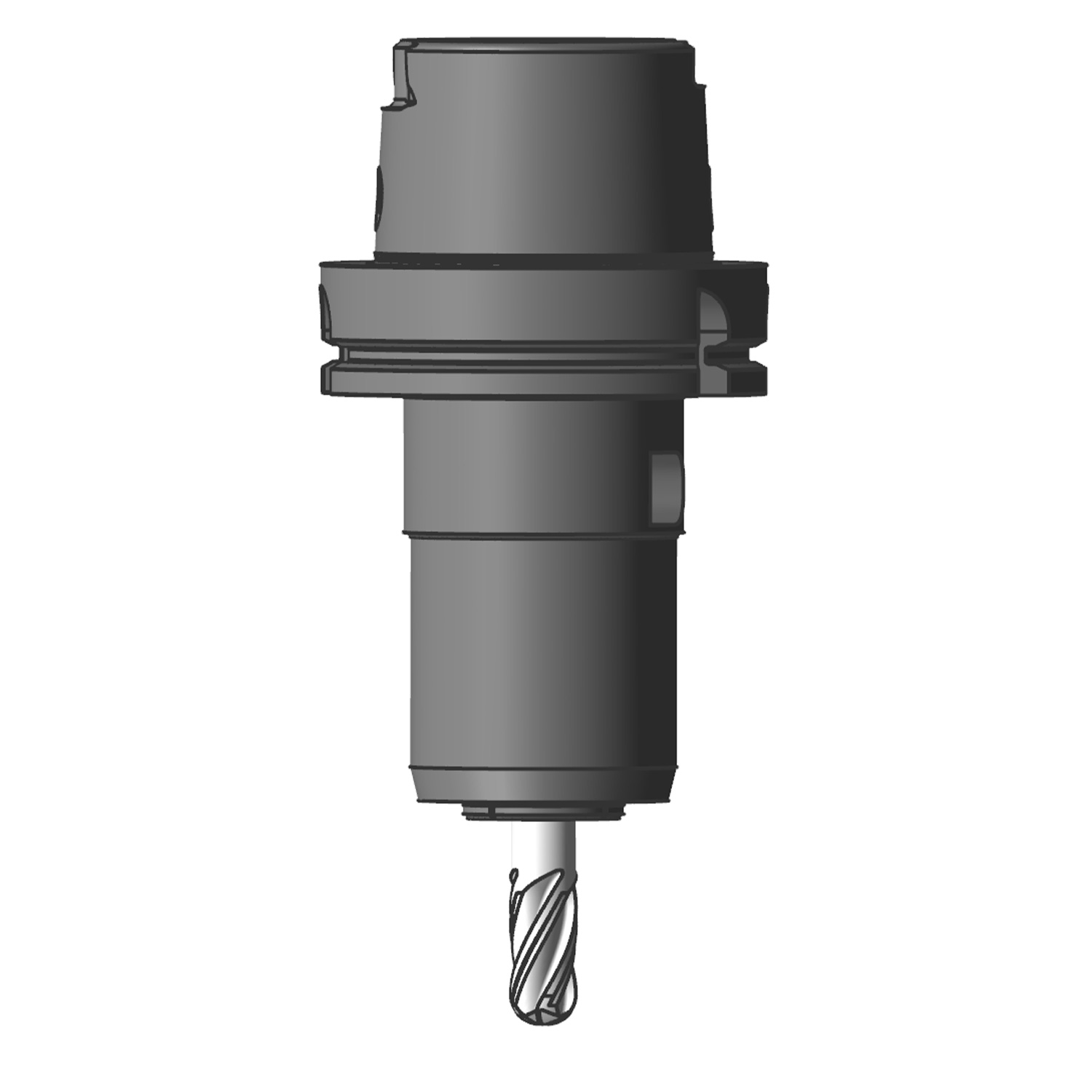

Tool Description	Kennametal SC Endmill D14,5 R6,35 Z4
Reference	DWG 60406181
Operation	Finishing
Cutting Edge	Carbide
Grade	KC643M
Vc	40 m/min (130 SFM)
Fz	0,08 mm/z (.003 IPT)
Ap	1 – 20 mm (0.04 – 0.78 in)
Ae	0,5 – 1 mm (0.02 – 0.04 in)
Power / Torque	1,9 kW / 21,2 N.m
MRR	18,7 cm³/min (1.1 in³/min)
Coolant supply	Radial Internal
Objective	Finish Side Milling / Safe Process
Tool Life	~ 70 min
