Notes

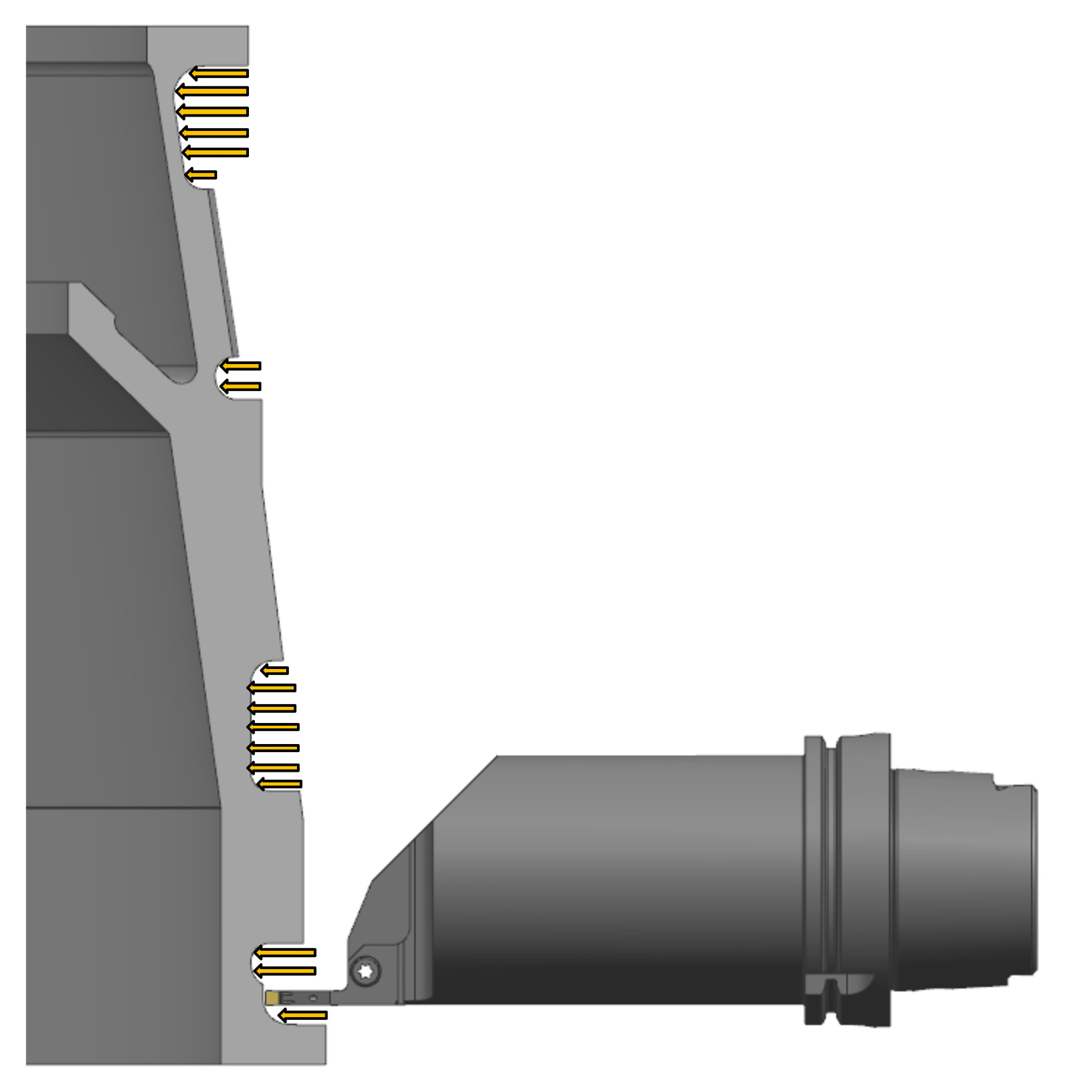

- Groove outside alternate left and right to pre-machine for later operations

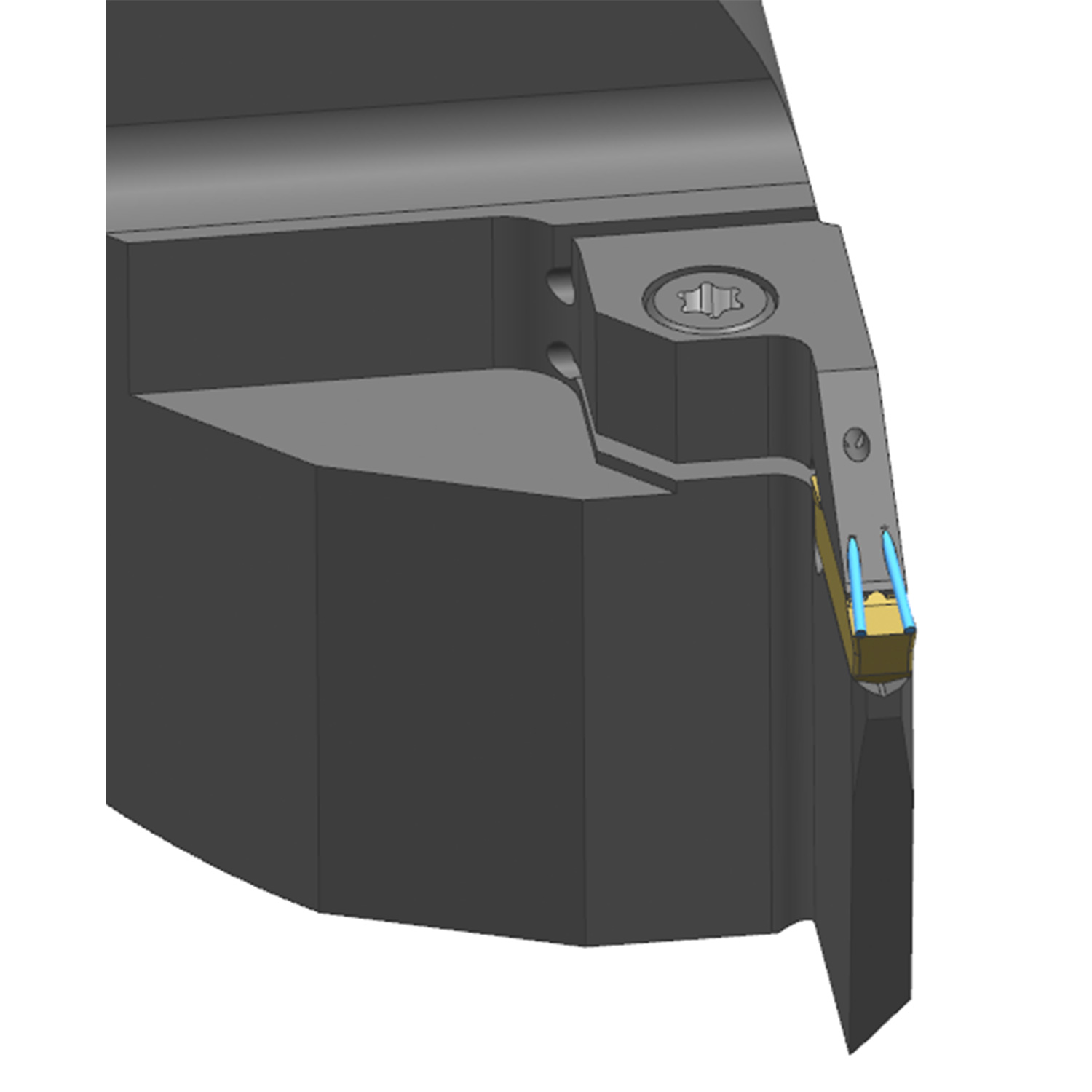

- 2 coolant bores Ø0,9 mm countersunk -> covering complete insert
Solution Specifications
| Material | Inconel 718+ |
| Tool Description | Kennametal Monolithic HSK100A Turning Tool |
| Drawing Number | 60378149 |
| Type of Comp. | Forged |
| Operation | Roughing |
| Cutting Edge | Carbide |
| Insert | Kennametal A4G0500M05P04GMP – KCU10 |
| Vc | 50 m/min (160 SFM) |
| F | 0,1 mm/rev (.004 IPR) |
| Ap | 5 mm (.2 in) |
| Pressure | 70 bar |
| Coolant supply | Through Clamp |
| Objective | Premachined & Good chip evacuation |
| Tool Life | ~ 20 min (left & right) |
