Notes
- Longitudinal turn on outside profile
- High MRR due to ceramic insert
- Full round insert to covert component profile

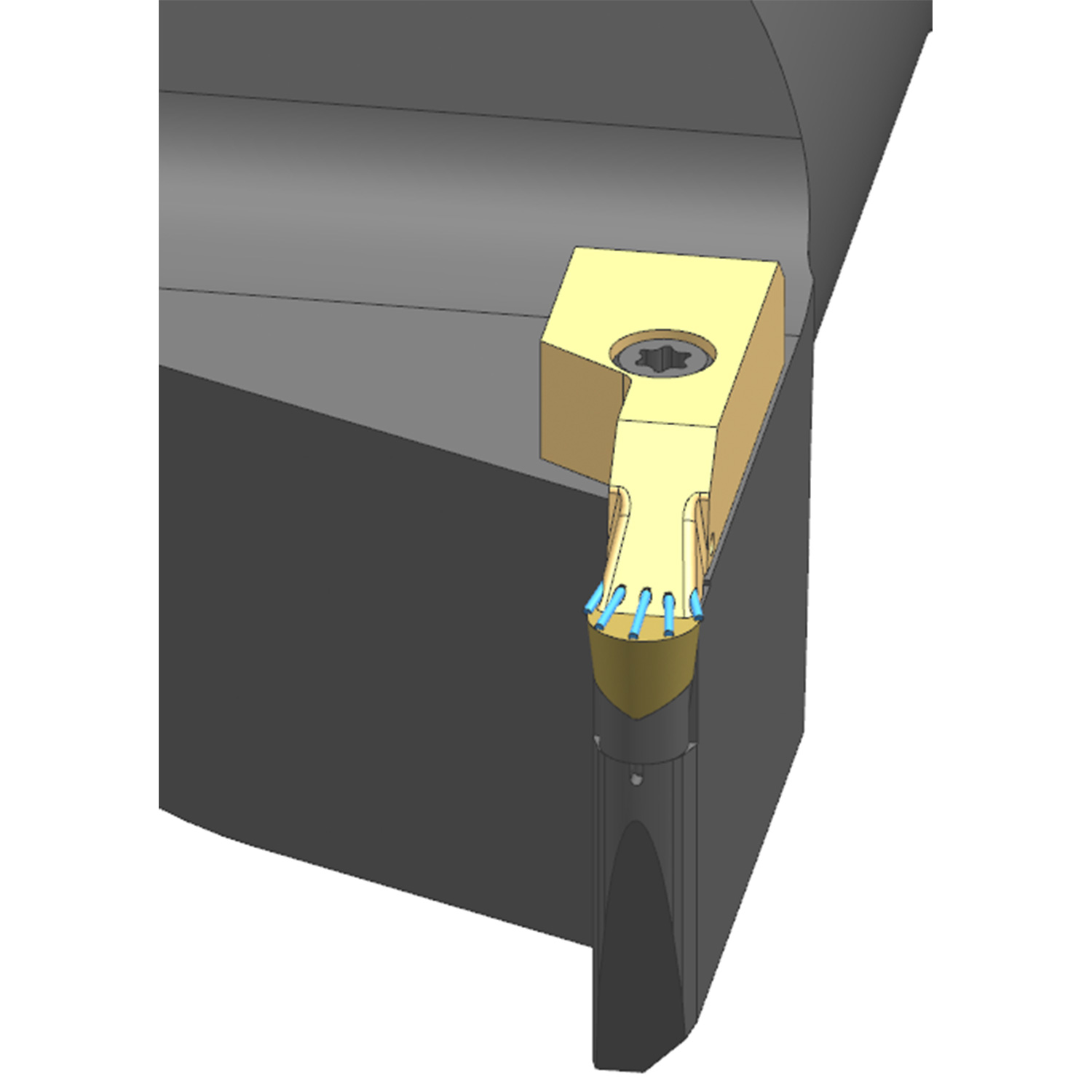

- 5 coolant bores Ø0,8mm countersunk -> covering complete insert
Solution Specifications
| Material | Inconel 718+ |
| Tool Description | Kennametal Monolithic HSK100A Turning Tool |
| Drawing Number | 60379614 |
| Type of Comp. | Forged |
| Operation | Roughing |
| Cutting Edge | Ceramic |
| Insert | Kennametal RCGX090700T01020 – KY1540 |
| Vc | 180 m/min (590 SFM) |
| F | 0,12 mm/rev (.005 IPR) |
| Ap | 1,5 mm (.04 DOC) |
| Pressure | 70 bar |
| Coolant supply | Through Clamp |
| Objective | High MRR & Good chip evacuation |
| Tool Life | ~ 8 min (left & right) |
