Aerospace Engine

TURBINE DISK


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E15-A1.png" alt="" class="wp-image-1296" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E15-A1.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E15-A1-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/E15-A1-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>

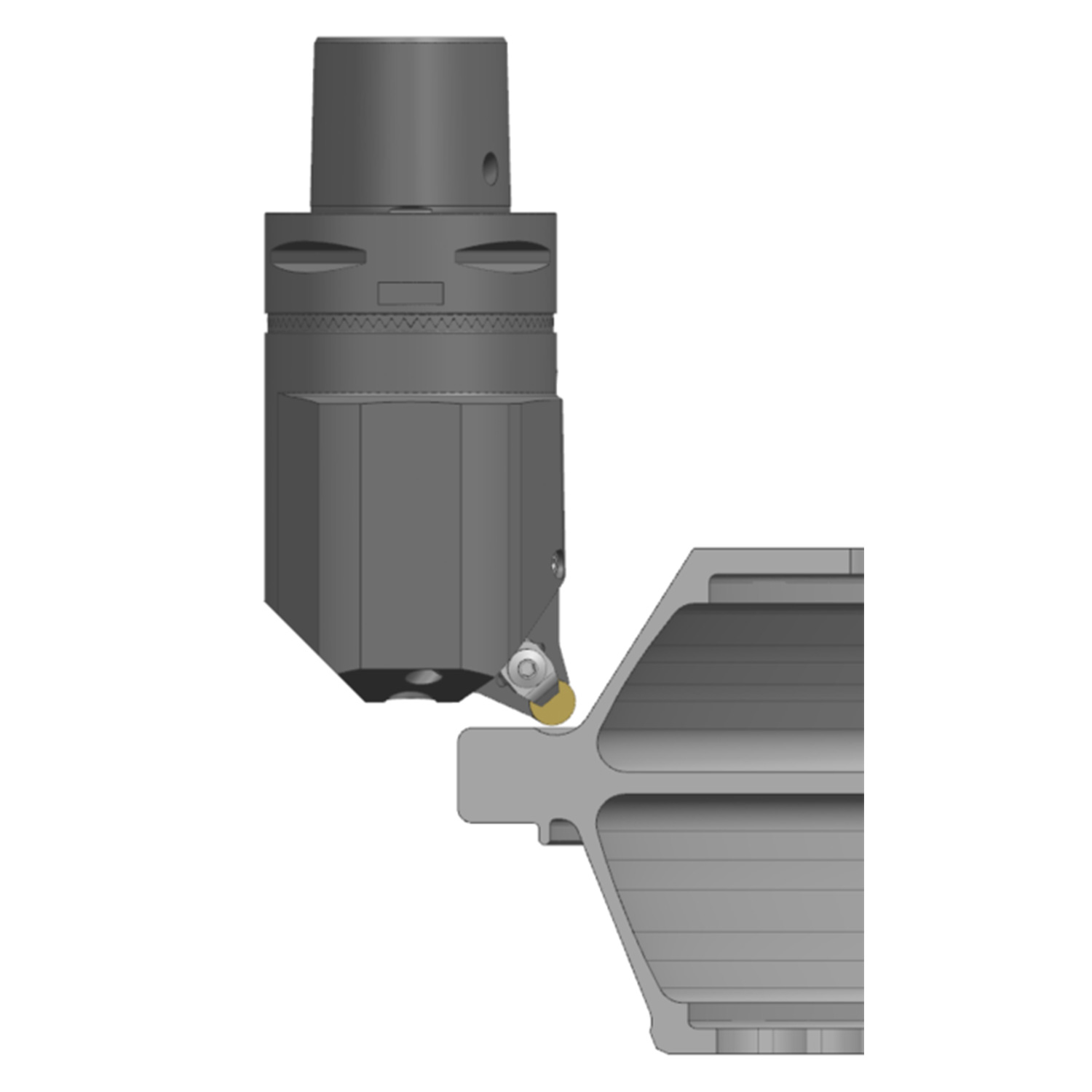

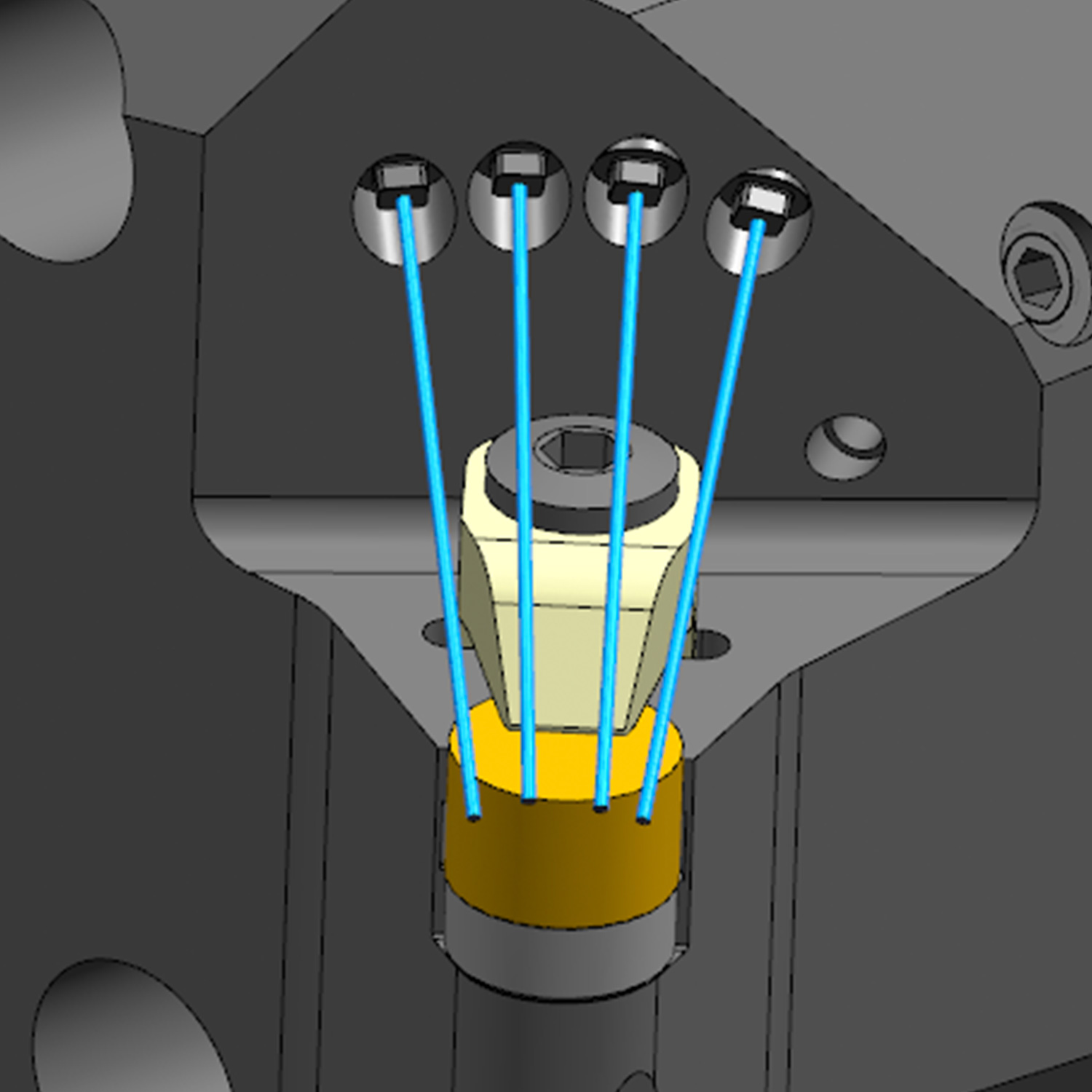

<ul class="wp-block-list"><li>Remove 1st layer of crust</li><li>Cone roughing and face &amp; longitudinal turn</li><li>Inserts selection was RNGN (4 cutting edges) -&gt; versatile cover all the component 4 nozzles Ø0,8 -&gt; cover 160° cutting edge arc</li></ul>
