Notes

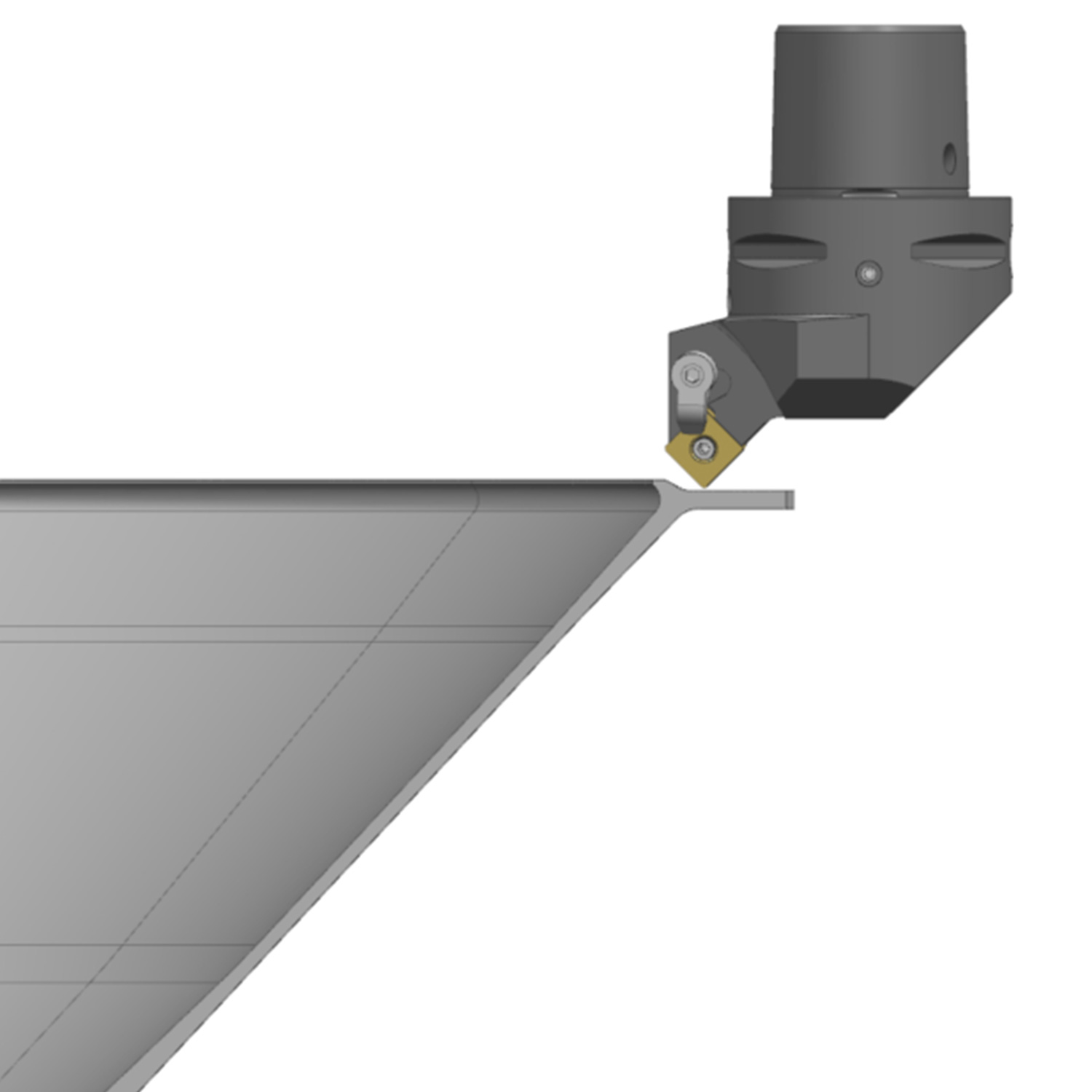

- Longitudinal turn operation of the scallop
- Lead angle 45°
- Inserts selection was SNMG (8 cutting edges) to reduce cost/part

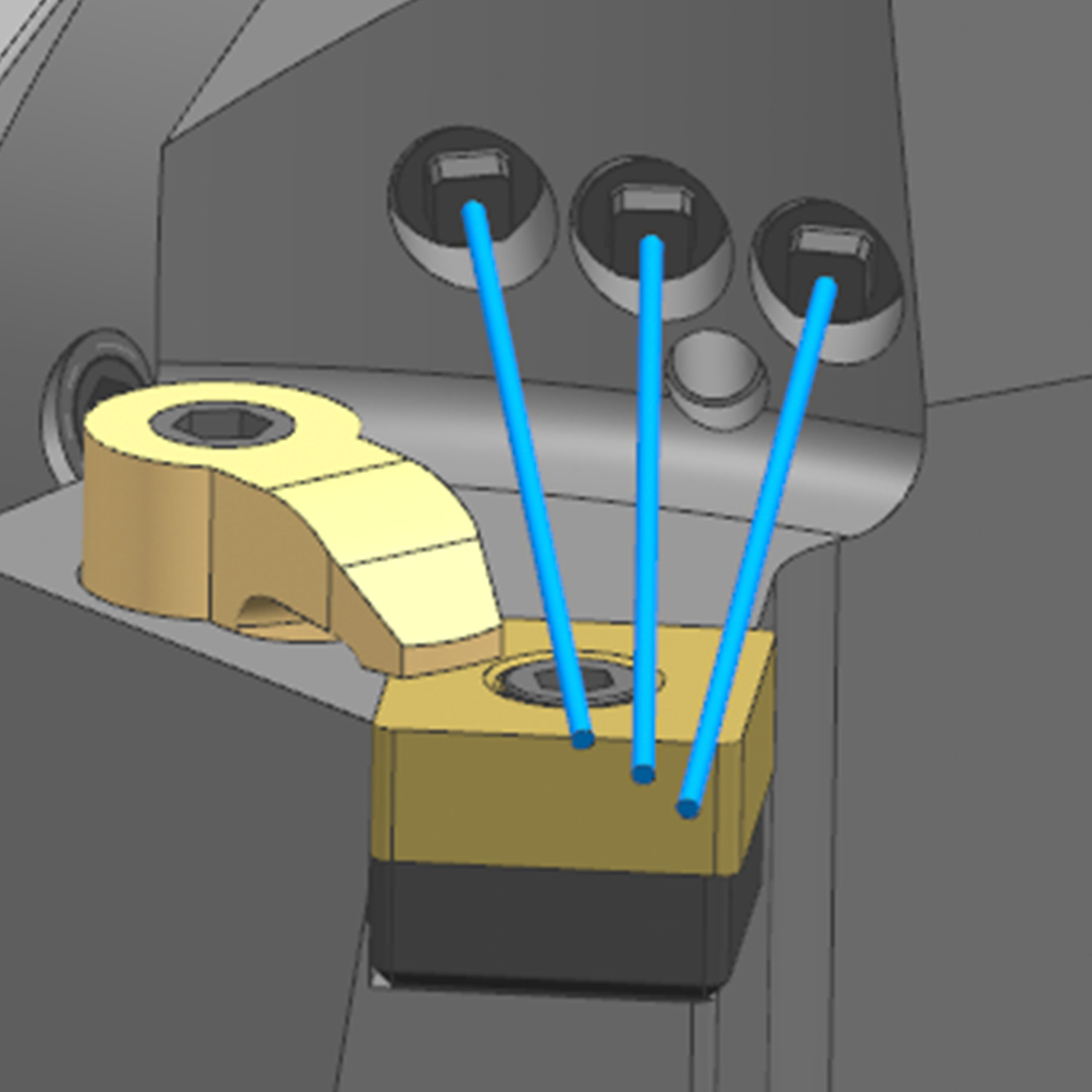

- 3 nozzles Ø0,8
Solution Specifications
| Material | Inconel 718 |
| Tool Description | Kennametal Monobloc PSC63 UHP |
| Drawing Number | 60494876 |
| Type of Comp. | Pre-machined |
| Operation | Roughing |
| Cutting Edge | Carbide |
| Insert | Kennametal SNMG120408MR – KCM25B |
| Vc | 45 m/min (150 SFM) |
| F | 0,2 mm/rev (.008 IPR) |
| Ap | 3 mm (.12 DOC) |
| Pressure | 200 bar |
| Coolant supply | Through Nozzles (QPM HPC) |
| Objective | Reduce CPP |
| Tool Life | ~ 15 min |
