Notes

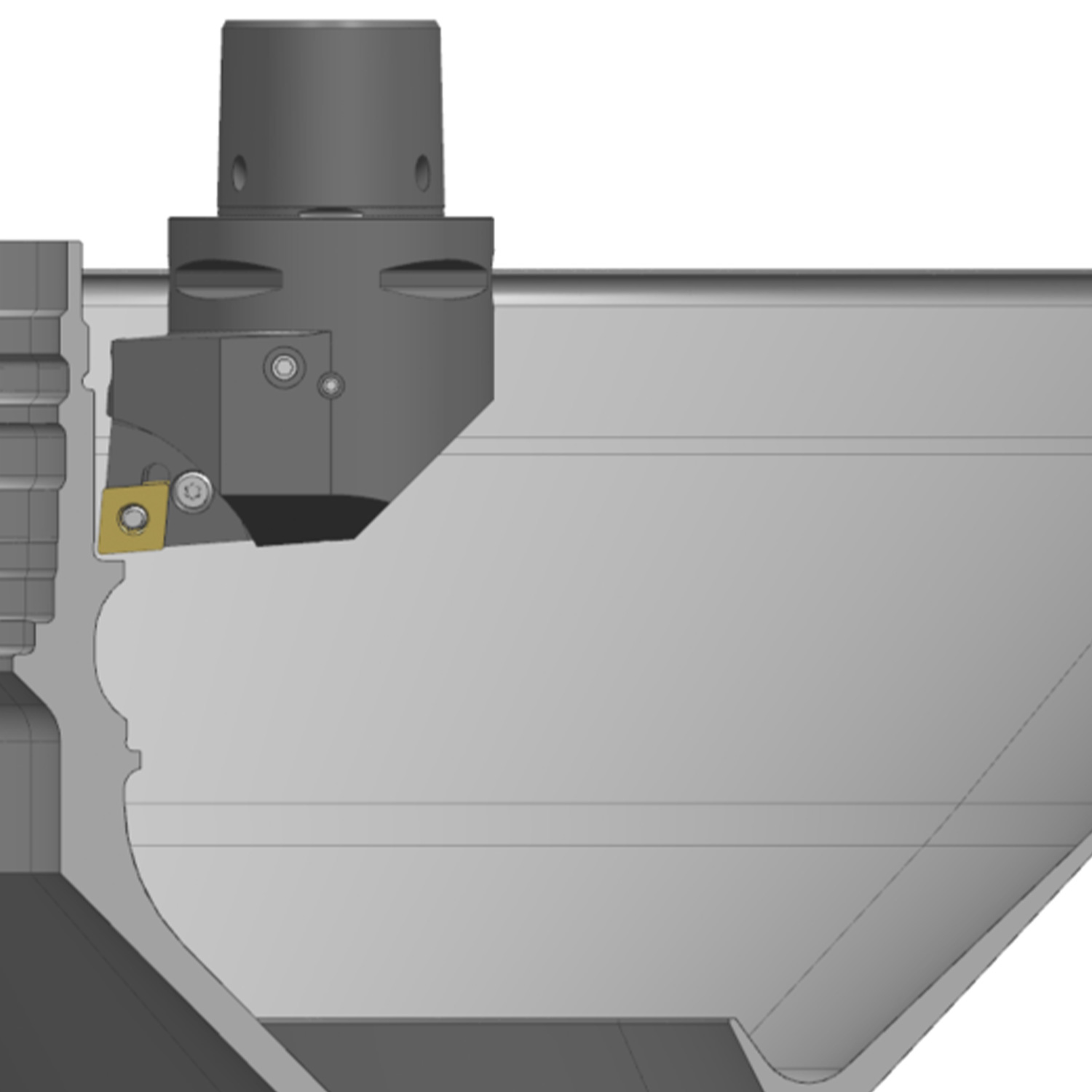

- Face turn and longitudinal turn operation with one tool
- Lead angle 95°
- Inserts selection was CNMG (4 cutting edges) to reduce cost/part
- 1 nozzle Ø0,8 on the radius + 4 nozzles Ø0,7 (2 nozzles/edge)
Solution Specifications
| Material | Inconel 718 |
| Tool Description | Kennametal Monobloc PSC63 UHP |
| Drawing Number | 60495349 |
| Type of Comp. | Pre-machined |
| Operation | Roughing |
| Cutting Edge | Carbide |
| Insert | Kennametal CNMG120408MR – KCU10 |
| Vc | 45 m/min (150 SFM) |
| F | 0,2 mm/rev (.008 IPR) |
| Ap | 2 mm (.08 DOC) |
| Pressure | 200 bar |
| Coolant supply | Through Nozzles (QPM HPC) |
| Objective | Optimization of Operation |
| Tool Life | ~ 15 min |
