Notes
- Uses Beyond Evolution adapters to support V-bottom round inserts
- Coolant exits under chips to prolong tool life
- Carbide insert compatible
- KM shank for superior rigidity over PSC
Solution Specifications
| Material | Inconel 718 |

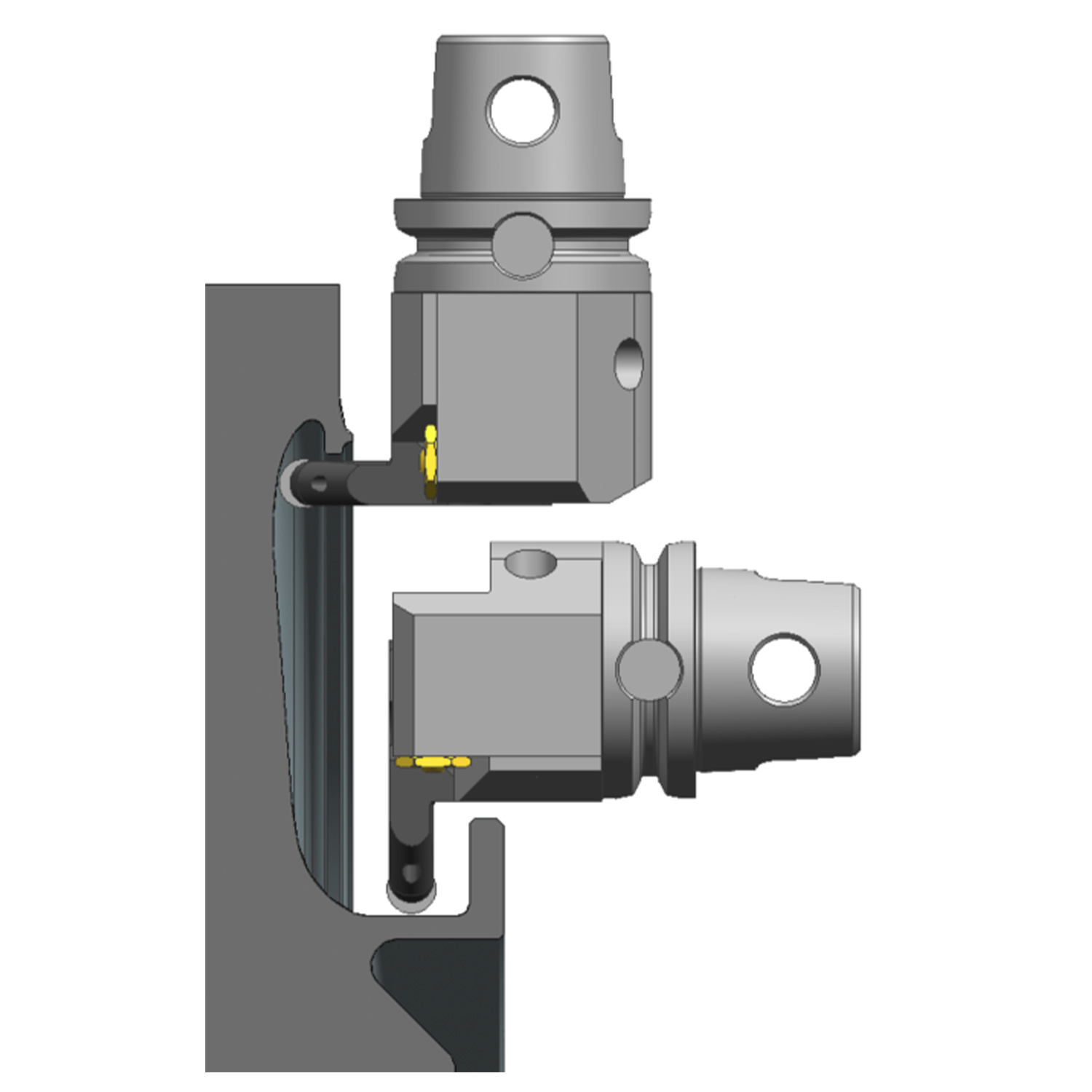

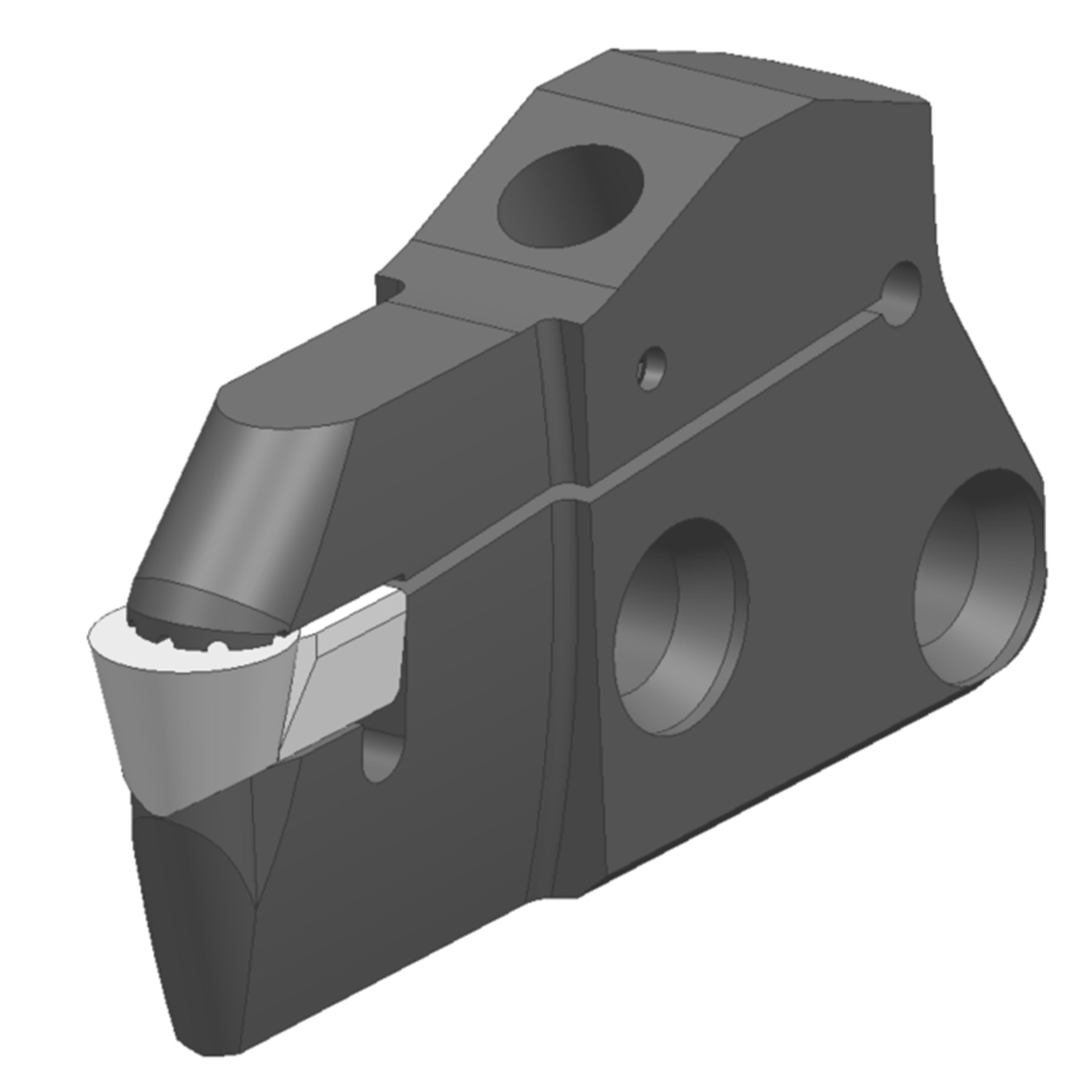

| Tool Description | Kennametal KM50 BE Adapter & Blade Assembly |
| Drawing Number | 61499864 |
| Type of Comp. | Pre-machined |
| Operation | Roughing |
| Cutting Edge | Ceramic |
| Insert | Kennametal RCGV35E – KYS30 |
| Vc | 220 m/min (720 SFM) |
| F | 0,18 mm/rev (.007 IPR) |
| Ap | 1,5 mm (.06 DOC) |
| Pressure | 20 bar |
| Coolant supply | Thru Clamp & Turret Nozzle |
| Objective | Face Profile |
| Tool Life | ~ 5 min |
