Notes
- One tool for OD profile finishing
- GUP geometry for chip control
- Beyond Evolution for chip control & prolonged tool life
- KM shank for superior rigidity over PSC
Solution Specifications
| Material | 6AL-4V Titanium |

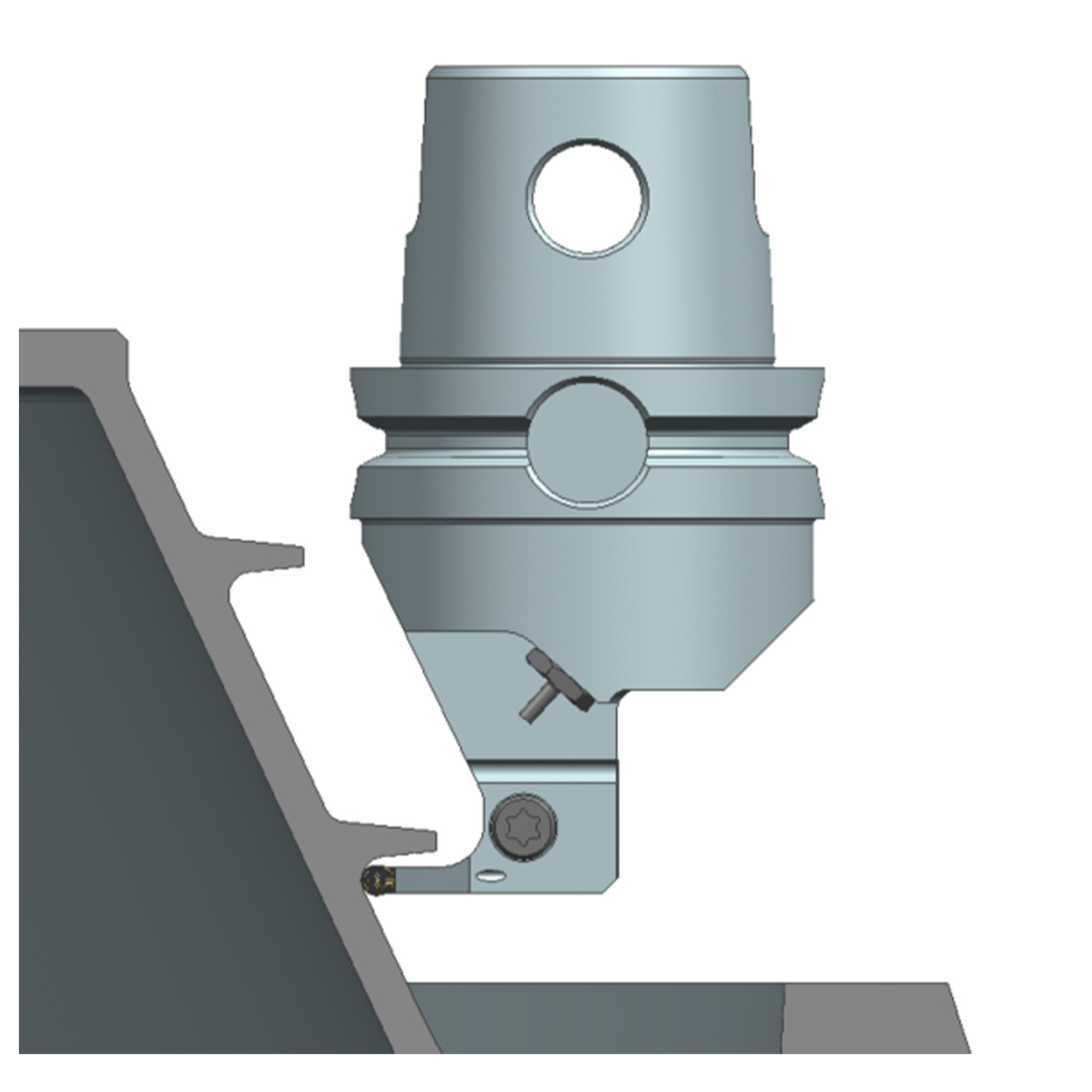

| Tool Description | Kennametal Monobloc KM63 Cutting Units |
| Kennametal MM# | MM 61086222 (Special, not listed on site) |
| Drawing Number | 61070678 |
| Type of comp. | Pre-machined |
| Operation | Finishing |
| Cutting Edge | Carbide |
| Insert | Kennametal ER0400M04P00GUP – KCU10 |
| Vc | 45 m/min (150 SFM) |
| F | 0,13 mm/rev (.005 IPR) |
| Ap | 0,25 mm (.010 DOC) |
| Pressure | 70 bar |

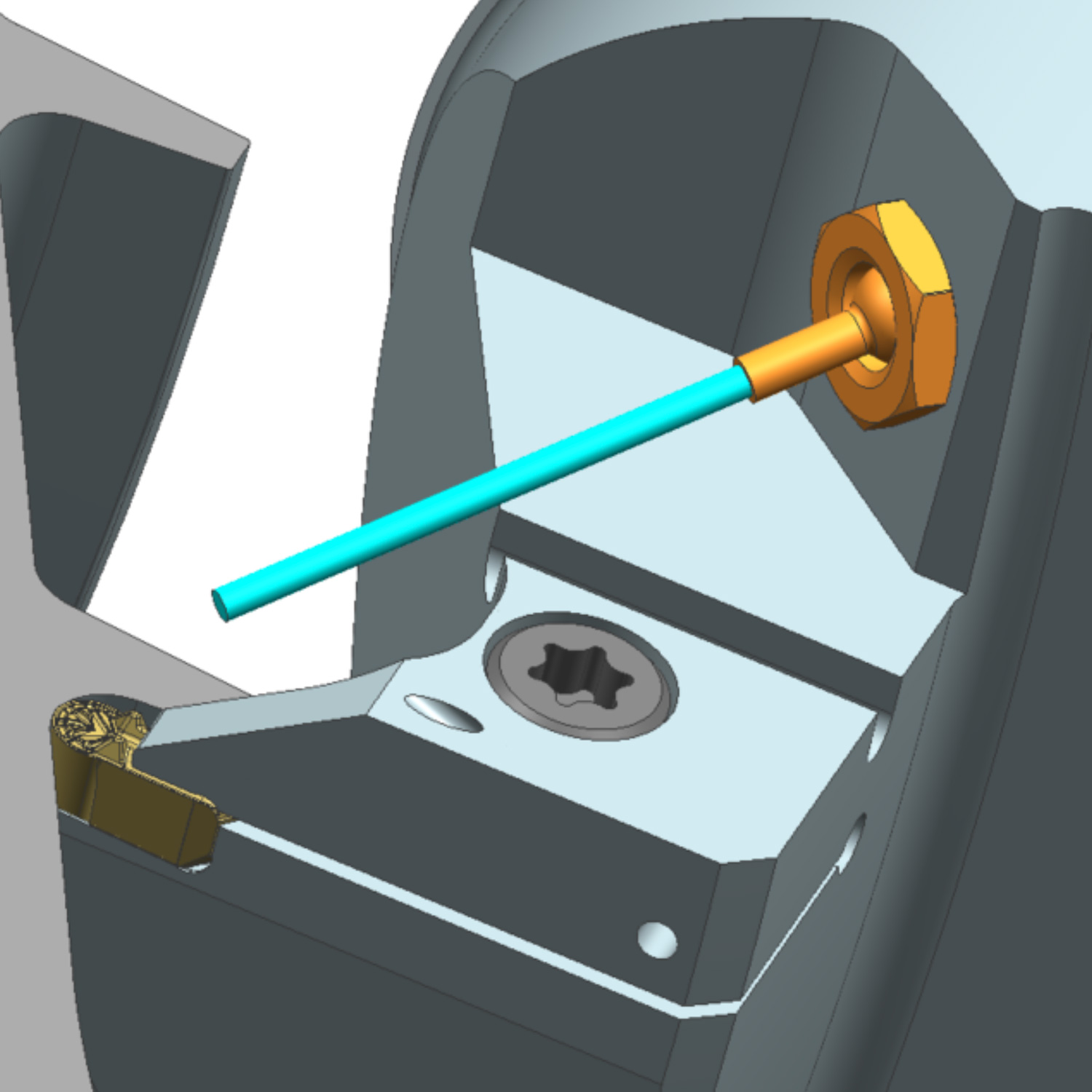

| Coolant supply | Beyond Evolution & Turret Nozzle |
| Objective | OD Profile |
| Tool Life | ~ 9 min |
