Notes

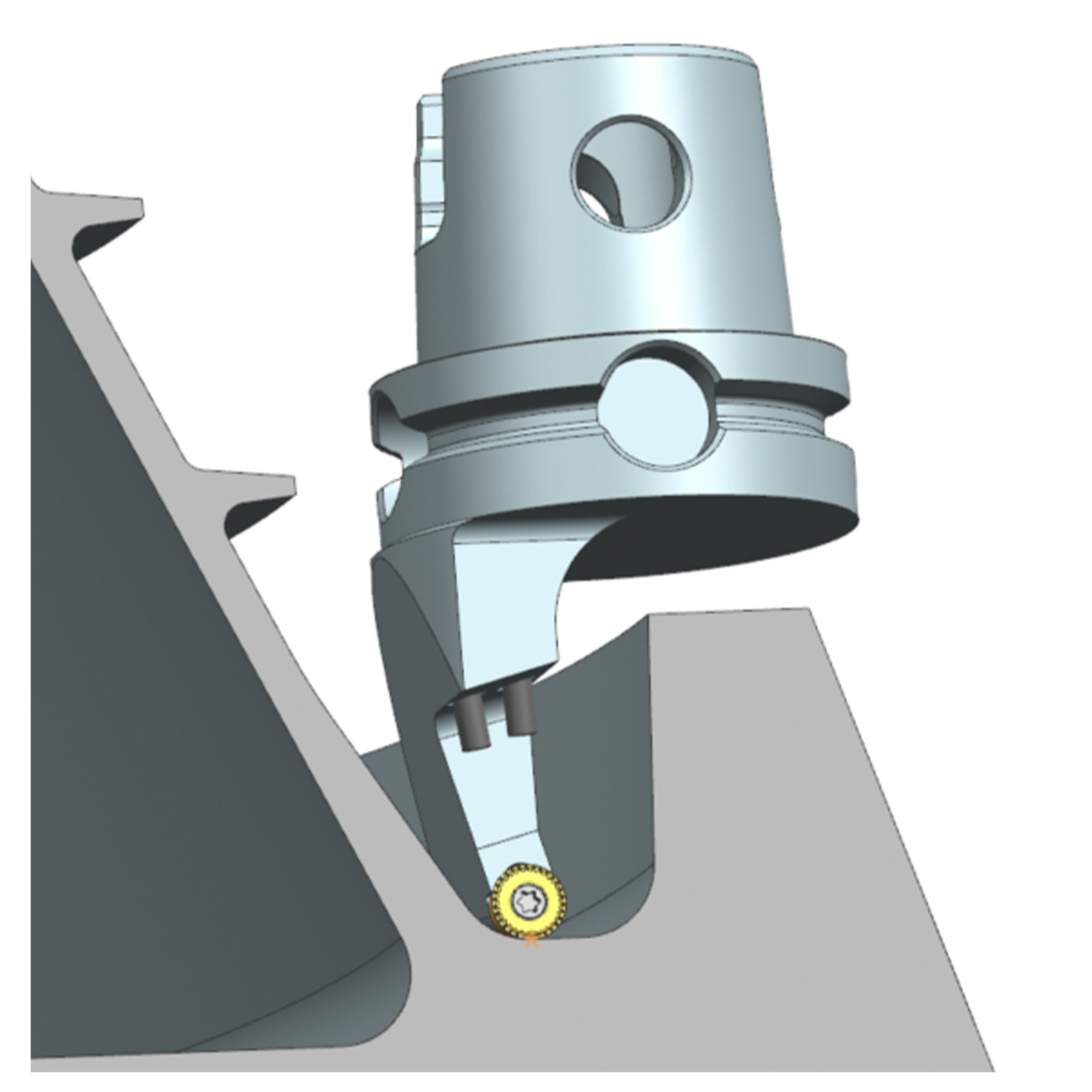

- One tool for face groove profile finishing
- MP (Starburst) geometry for chip control
- Round inserts allow various tool path generation for optimum production
- KM shank for superior rigidity over PSC
Solution Specifications
| Material | 6AL-4V Titanium |
| Tool Description | Kennametal Monobloc KM63 Cutting Units |
| Kennametal MM# | MM 60070391 (Special, not listed on site) |
| Drawing Number | 60070392 |
| Type of comp. | Pre-machined |
| Operation | Finishing |
| Cutting Edge | Carbide |
| Insert | Kennametal RCMT10T3M0MP – KCS10 |
| Vc | 45 m/min (150 SFM) |
| F | 0,15 mm/rev (.006 IPR) |
| Ap | 0,6 mm (.025 DOC) |
| Pressure | 70 bar |

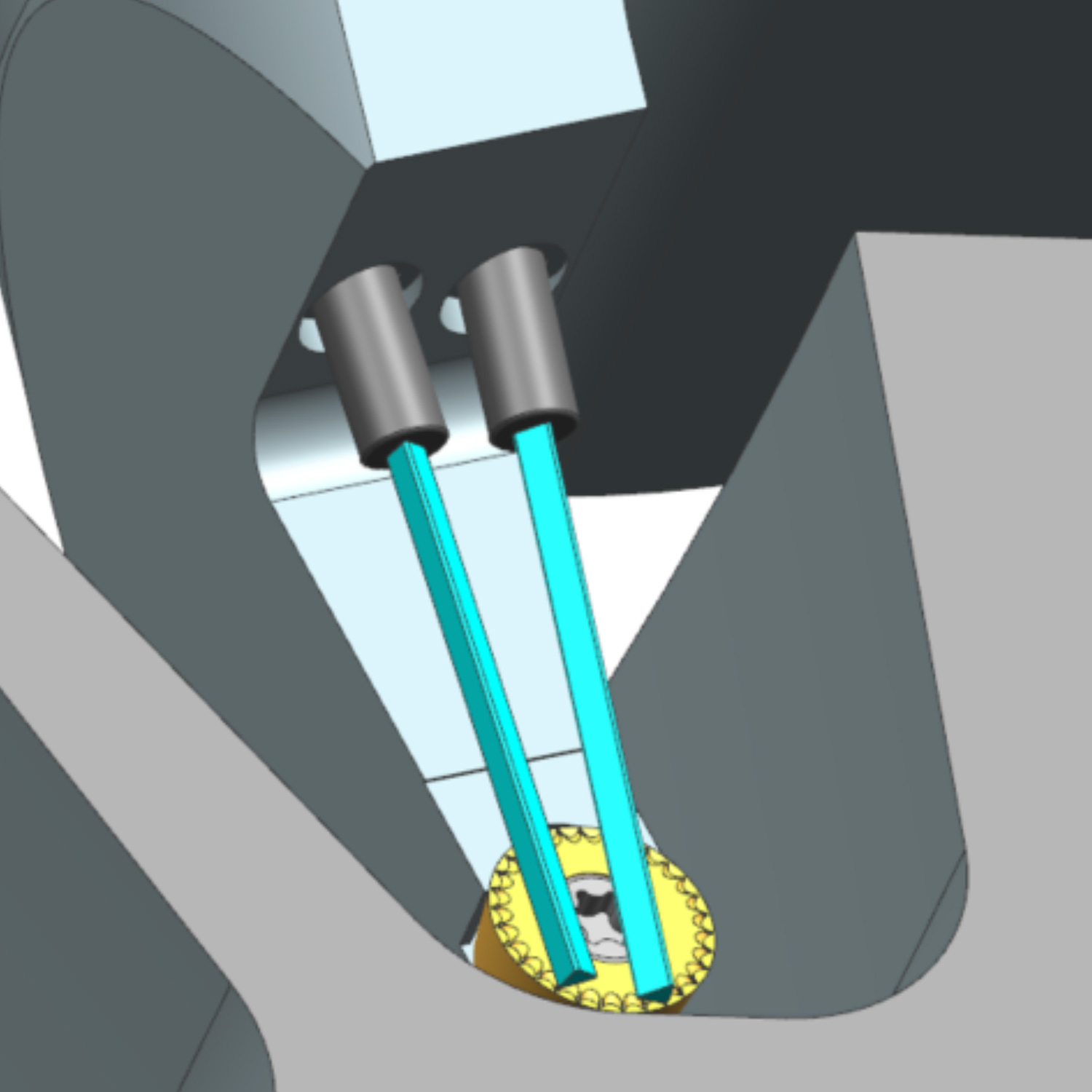

| Coolant supply | Through Nozzles (Chip Blaster) |
| Objective | Face Groove Profile |
| Tool Life | ~ 20 min |
